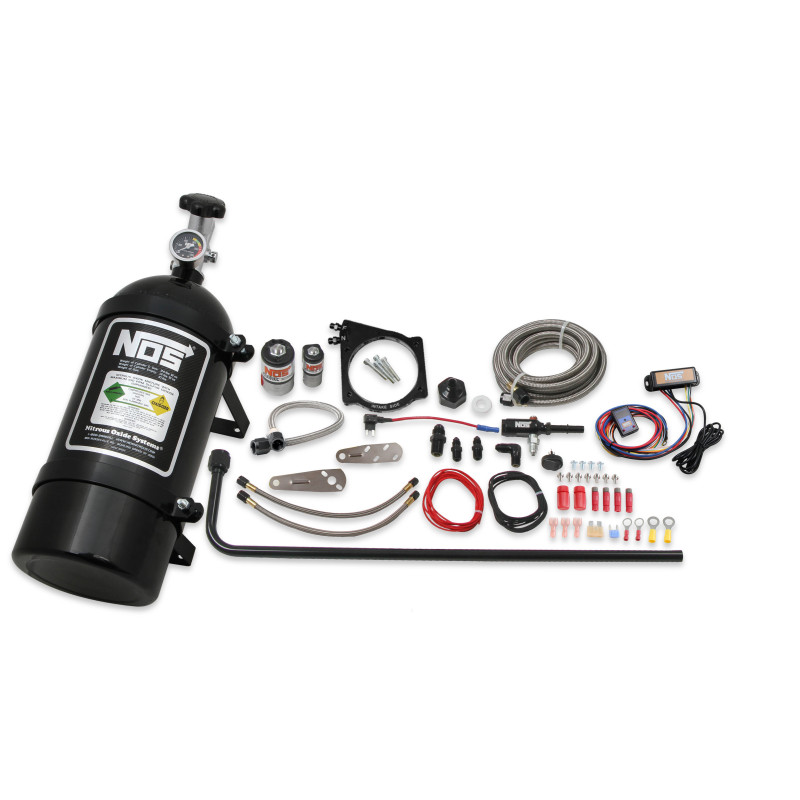

Wet Nitrous Plate Kit GM LS Drive-by-Wire Throttle Body 4-Bolt 102/105 mm 1997-2012 - Black, up to 250 HP

If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you.

These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*.

*It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.

Key features

• Fits GM LS engines with drive-by-wire style 102mm or 105mm throttle body
• Includes jetting for 100, 125, & 150 horsepower
• Ideal for use with the Holley Hi-Ram, Sniper EFI, or MSD Atomic LS Manifold
• This wet kit provides exceptionally smooth power delivery

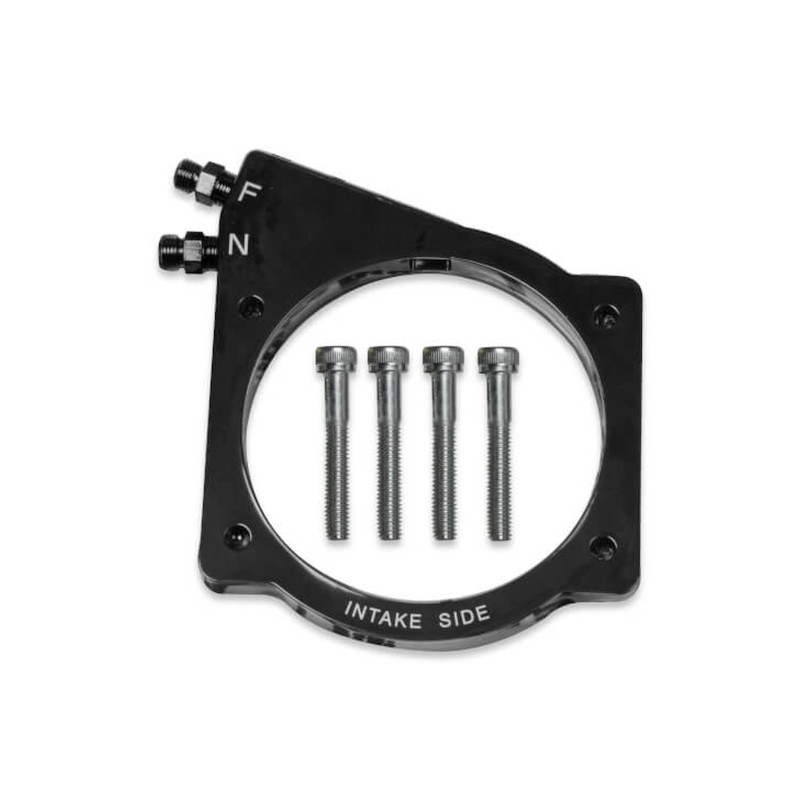

• Single 105mm 1/2 inch thick black plate between the throttle body and manifold
• Bottle is made from 6061-T6 Aluminum
• Supports up to 250 RWHP (jets purchased separatel PI)
• Includes a 10 lb. black nitrous bottle with brackets

Technical specifications

• Brand: NOS (Nitrous Oxide System PI)
• Manufacturer part number: 05173BNOS
• Jet type: Flare
• System type: Wet
• Maximum power: 250 HP
• Jetting included for: 100, 125, 150 HP
• Number of solenoids: 2
• Nitrous solenoid: Cheater
• Fuel solenoid: Cheater
• Solenoid cover colour: Black
• Delivery style: EFI Spacer Plate
• Plate flange / bolt pattern: GM 4-Bolt LS
• Plate mounting: 4 bolt
• Plate diameter: 105 mm
• Plate thickness: 1/2 in (12.7 m PI)
• Feed line size: 6AN
• Bottle capacity: 10 lb (4.5 k PI)
• Bottle material: 6061-T6 Aluminum
• Bottle colour: Black
• Bottle valve: Super Hi-Flo
• Adjustable: Yes
• Bottle included: Yes
• Bracket material: Steel
• Brackets included: Yes
• Plate included: Yes

Good to know

• Retains stock throttle body location and orientation using a 1/2" billet aluminum plate. Power levels up to 250 RWHP do not require injector upgrade, however, the total fuel supply system must be sized according to expected power levels. Recommend 1 step colder spark plug up to 150 RWHP, 2 steps colder spark plug on 200 and up RWHP

Important: this product runs on nitrous oxide (N2 PI), a gas we do not supply and which is currently difficult to obtain. It is your responsibility to find a local supplier of gas for professionals. NOS bottles do not comply with CE standards (they do not carry the PI mark): only CE-approved bottles may be used. European manufacturers offer bottles approved to contain this gas; please check the applicable standards and verify the manufacturer's origin and compliance before purchasing. NOS fittings are not metric (AN / NPT threads depending on the part numbe PI): plan for the adapters needed for your installation. Please comply with the regulations in force in your country.
