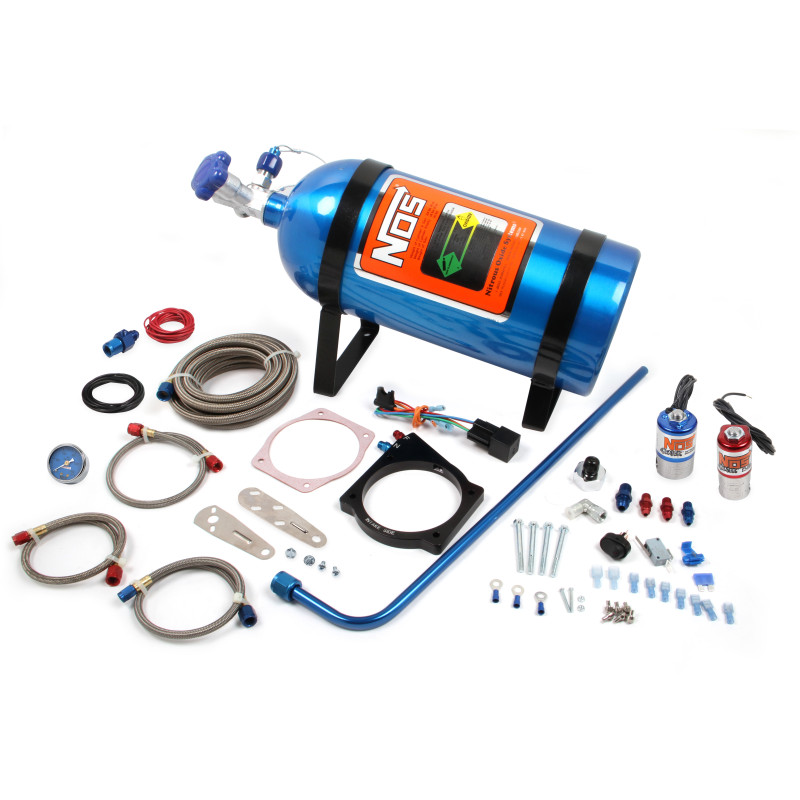

Wet Nitrous Plate Kit GM LS Cable Throttle Body 4-Bolt 90/92 mm 1997-2012 - Blue, up to 250 HP

If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you.

These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*.

*It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.

Key features

• Fits 90mm or 92mm cable actuated throttle body
• For use with drive-by-wire or cable operated Throttle Bodies
• Single 1/2" plate between the throttle body and manifold
• Ideal for use with the Holley Hi-Ram & MSD Atomic LS Manifold
• Supports up to 250 RWHP (Rear Wheel Horse Powe PI)
• Plate outlet design maximizes distribution
• Includes a 10 lb. "NOS Blue" nitrous bottle with brackets
• 6061 Billet Aluminum, CNC Machined Plate

Technical specifications

• Brand: NOS (Nitrous Oxide System PI)
• Manufacturer part number: 05163NOS
• Jet type: Flare
• System type: Wet
• Maximum power: 250 HP

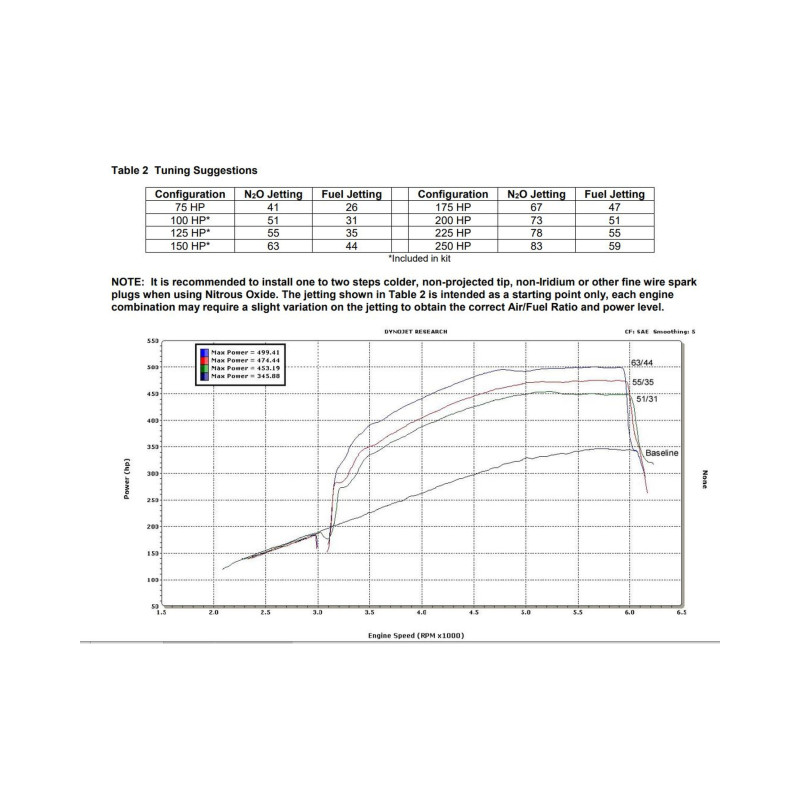

• Jetting included for: 100, 125, 150 HP
• Number of solenoids: 2
• Nitrous solenoid: Cheater
• Fuel solenoid: Cheater II
• Solenoid cover colour: Blue/Red
• Delivery style: EFI Spacer Plate
• Plate flange / bolt pattern: GM 90mm LS 4-Bolt
• Plate mounting: 4 bolt
• Plate diameter: 90 mm
• Plate thickness: 1/2 in (12.7 m PI)
• Feed line size: 6AN
• Bottle capacity: 10 lb (4.5 k PI)
• Bottle material: 6061-T6 Aluminum
• Bottle colour: Blue
• Bottle valve: Super Hi-Flo
• Adjustable: Yes
• Bottle included: Yes
• Bracket material: Steel
• Brackets included: Yes
• Plate included: Yes

Good to know

• Retains stock throttle body location and orientation using a 1/2" billet aluminum plate. Power levels up to 250 RWHP do not require injector upgrade, however, the total fuel supply system must be sized according to expected power levels. Recommend 1 step colder spark plug up to 150 RWHP, 2 steps colder spark plug on 200 and up RW

Important: this product runs on nitrous oxide (N2 PI), a gas we do not supply and which is currently difficult to obtain. It is your responsibility to find a local supplier of gas for professionals. NOS bottles do not comply with CE standards (they do not carry the PI mark): only CE-approved bottles may be used. European manufacturers offer bottles approved to contain this gas; please check the applicable standards and verify the manufacturer's origin and compliance before purchasing. NOS fittings are not metric (AN / NPT threads depending on the part numbe PI): plan for the adapters needed for your installation. Please comply with the regulations in force in your country.
