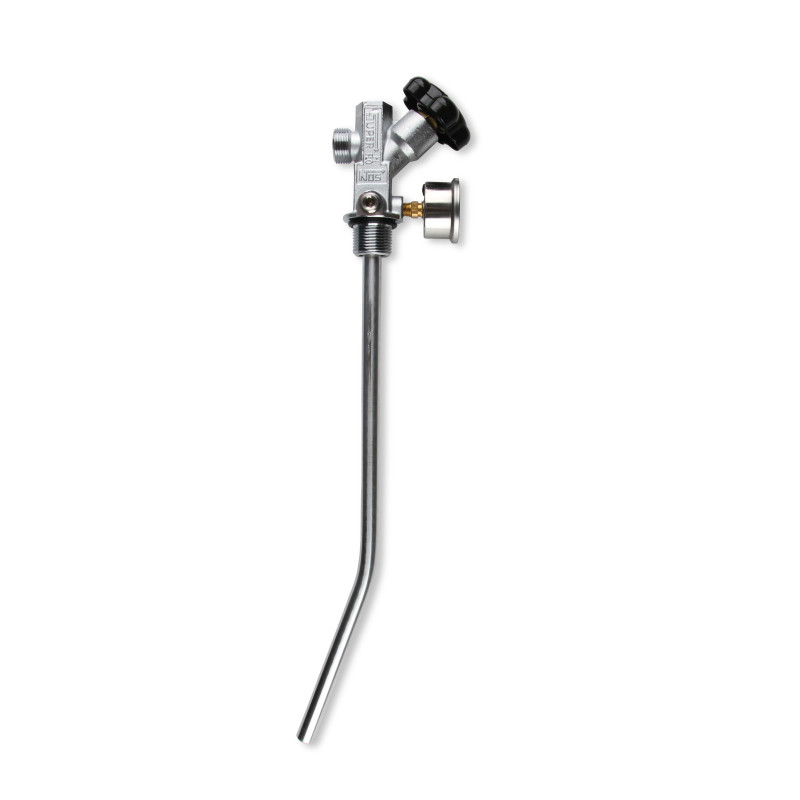

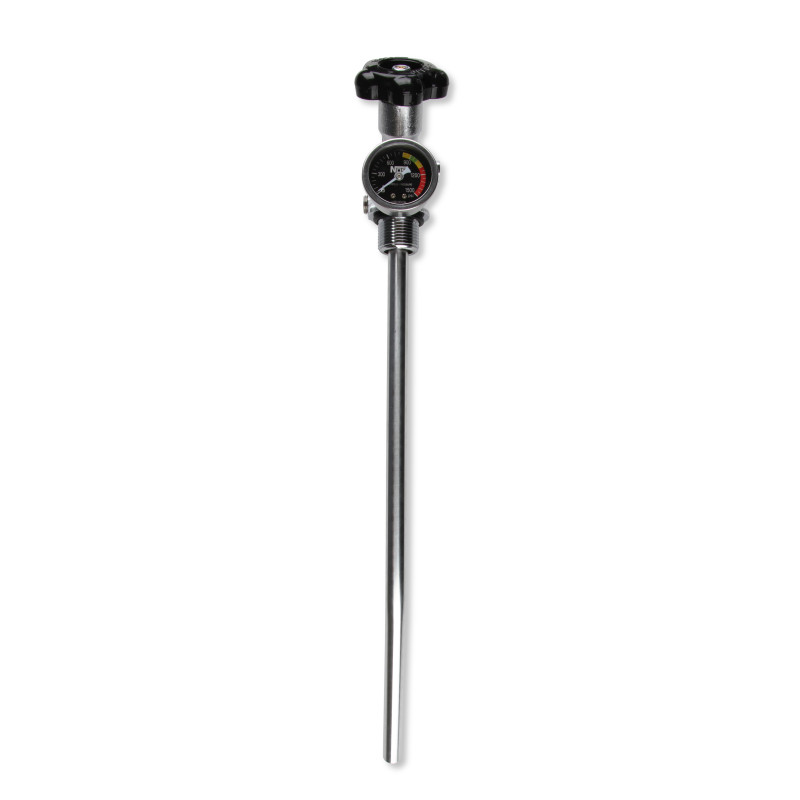

Super Hi-Flo 10 lb Nitrous Bottle Valve with Siphon Tube and Black Gauge

NOS now offers Super Hi-Flo bottle valve assemblies with the siphon tube and nitrous pressure gauge already installed, a great way to upgrade to the highest-flowing valve and tube NOS has to offer. Key valve features include a 1/8 inch NPT gauge port, a 1/4 inch NPT accessory port, large internal and outlet ports and an O-ring seal. The 3/8 inch I.D. screw-on siphon tube is made from 6061 aluminum and can be used as an upgrade for an older compression-fitting tube. Each assembly includes a 1-1/2 inch nitrous gauge, blue or black face, with easy-to-see color graduations and a white pointer. The gauges have a stainless steel case with brass internals.

Key features

• Super Hi-Flow assembly features siphon tube and nitrous pressure gauge already installed
• Great way to update a bottle to the best flowing valve NOS offers
• Valve has large internal ports for superior flow and an O-ring bottle seal
• Siphon tube is made from 6061 aluminum and 3/8" I.D. for maximum flow
• 1-1/2" diameter nitrous pressure gauge features stainless steel and brass construction providing accurate pressure measurement
• Assembly is designed to Support 500+ Horsepower

Technical specifications

• Brand: NOS (Nitrous Oxide System PI)
• Manufacturer part number: 16137ABNOS
• Maximum power: 500+ HP
• Bottle capacity: 10 lb (4.5 k PI)
• Bottle valve: Super Hi-Flo
• Gauge type: nitrous pressure
• Outside diameter: 3/8 in (9.5 m PI)
• Gauge included: Yes
• Outlet thread: CGA #660
• Siphon tube included: Yes
• Tightening torque: 100 ft-lb (136 N PI)
• Length: 15-1/8 in (384 m PI)
• Tube material: Aluminum

Good to know

• Valve to Bottle Torque = 100 ft-lb

Important: this product runs on nitrous oxide (N2 PI), a gas we do not supply and which is currently difficult to obtain. It is your responsibility to find a local supplier of gas for professionals. NOS bottles do not comply with CE standards (they do not carry the PI mark): only CE-approved bottles may be used. European manufacturers offer bottles approved to contain this gas; please check the applicable standards and verify the manufacturer's origin and compliance before purchasing. NOS fittings are not metric (AN / NPT threads depending on the part numbe PI): plan for the adapters needed for your installation. Please comply with the regulations in force in your country.
