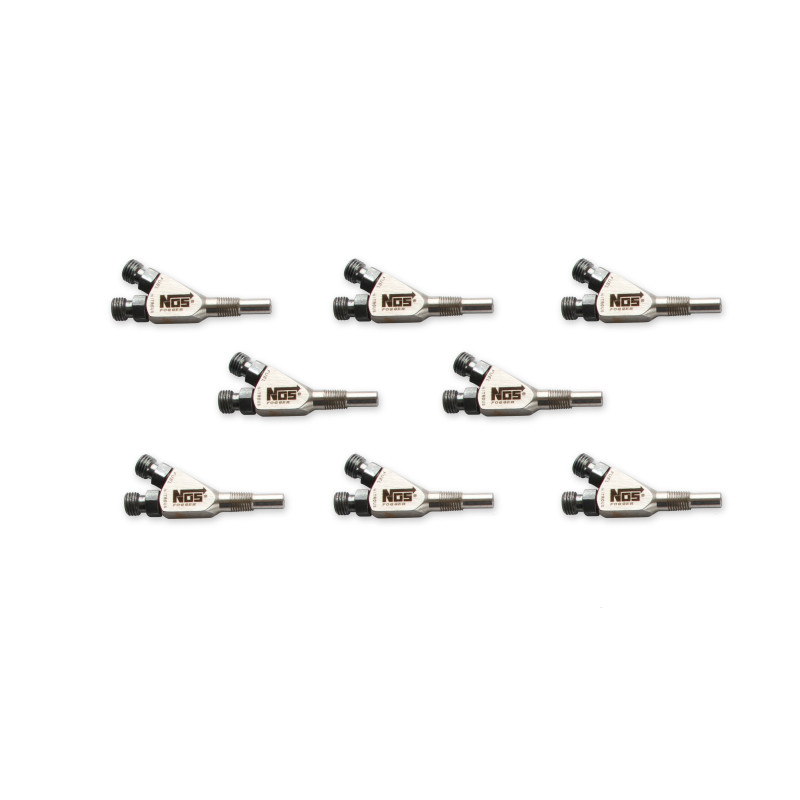

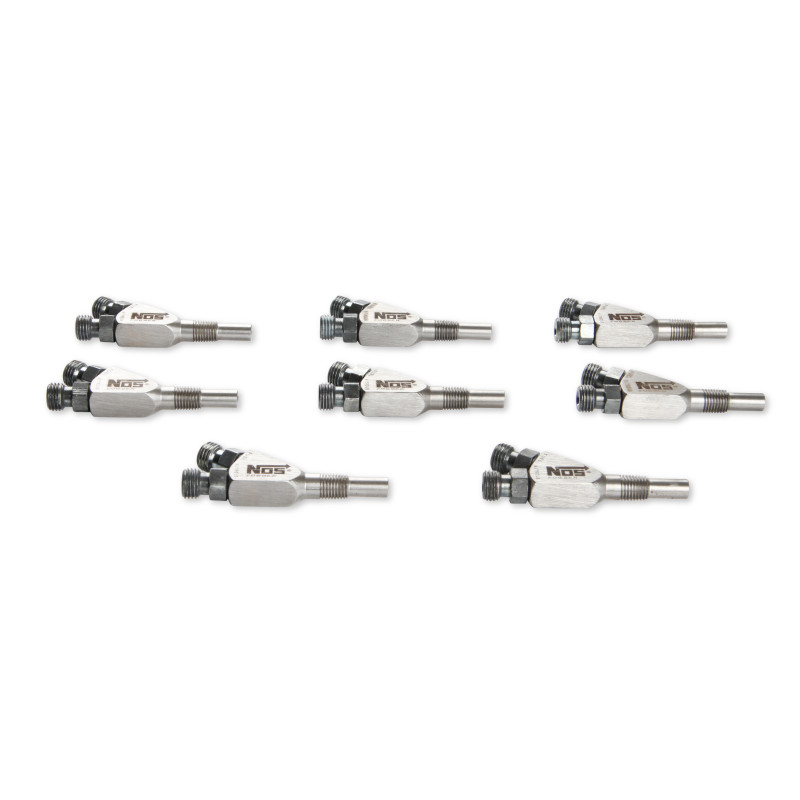

Stainless Steel Annular Discharge (Axial) Fogger Nozzles - Pack of 8

8-Pack Annular Discharge Fogger Nozzle (Stainless Stee PI) - NOS has done it again! The stainless steel Annular Discharge nozzle is the most effective design in the world, The Annular Discharge Fogger nozzle's secret lies in specially engineered annular orifices which mix the nitrous and fuel in a radial pattern outside the nozzle tip to provide superior atomization of supplemental fuel as well as more even fuel distribution within the nitrous flow. This new nozzle design produces an even tighter "cone" of nitrous oxide/fuel mixture and provides more precise control of nitrous/fuel ratios throughout the jetting spectrum. It is important to note that the Annular Discharge nozzle shoots out straight, and as such is NOT a direct replacement for the standard Fogger or Fogger 2 nozzles. It is designed to be fitted to the manifold at a very tight angle (much closer to 30° than the normal 90° -but entirely dependent on runner desig PI). Because of the way the Annular Discharge nozzle can be installed, it does not protrude into the intake tract and disrupt flow. The nozzles are made of stainless steel for superior durability.

Key features

• Fully Adjustable
• Simple Jet Change
• Feature Injection At 180° Angle
• Fixed Metering Orifice
• 8-Pack

Technical specifications

• Brand: NOS (Nitrous Oxide System PI)
• Manufacturer part number: 13700R-8NOS
• Quantity per pack: 8
• Nozzle spray pattern: 180 Degree
• Material: Stainless Steel
• Outlet: 180 Degree
• Type: Wet
• Thread: 1/16 NPT

Good to know

• Also available in single packs - P/N 13700RNOS

Important: this product runs on nitrous oxide (N2 PI), a gas we do not supply and which is currently difficult to obtain. It is your responsibility to find a local supplier of gas for professionals. NOS bottles do not comply with CE standards (they do not carry the PI mark): only CE-approved bottles may be used. European manufacturers offer bottles approved to contain this gas; please check the applicable standards and verify the manufacturer's origin and compliance before purchasing. NOS fittings are not metric (AN / NPT threads depending on the part numbe PI): plan for the adapters needed for your installation. Please comply with the regulations in force in your country.
