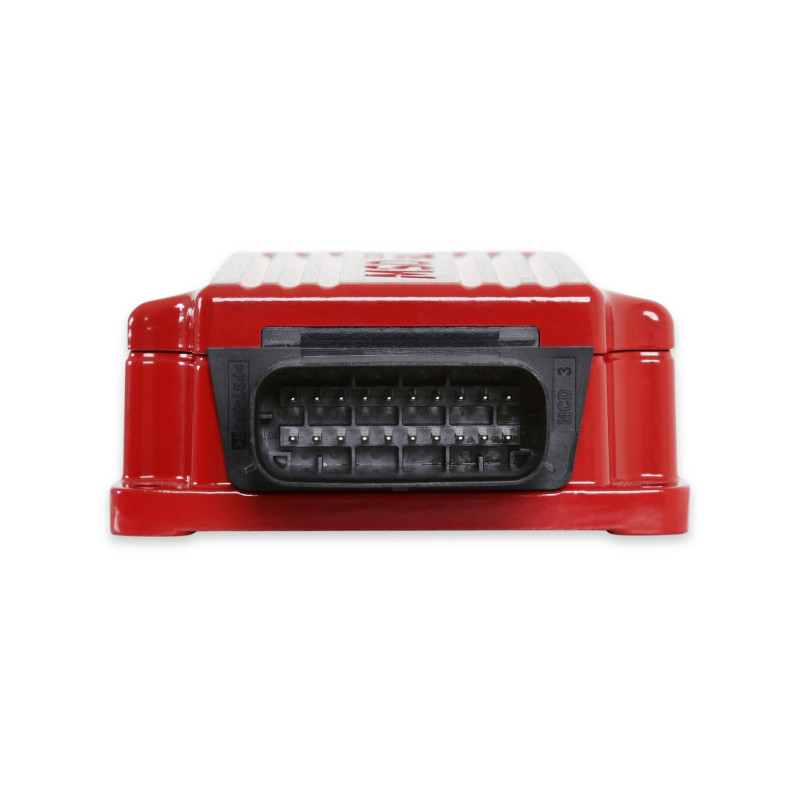

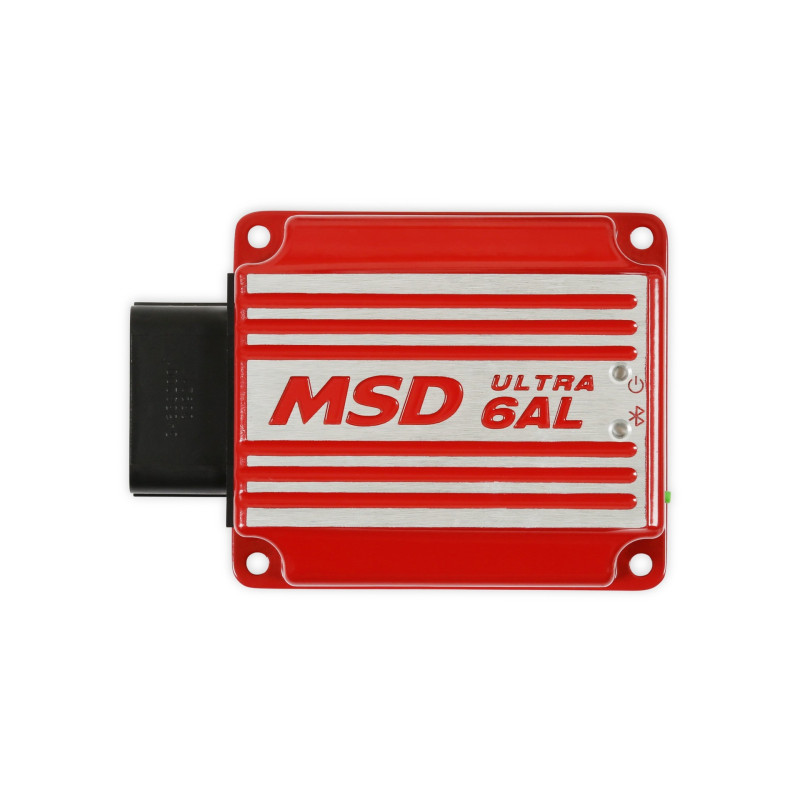

Ultra 6AL Ignition Box - Red

Ultra 6AL Ignition Box - Red

MSD ignition box or module for tuned and competition engines. Ideal for upgrading and strengthening the ignition of a modified engine.

Key features

• High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
• Tach Output
• MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
• Increase spark series duration lasts for 18 of crankshaft rotation
• 15,000 RPM with 14.4 Volts
• Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value

Specifications

• Colour: red
• Grade: Performance
• Number of terminals: 20
• Primary voltage: 520-540 V
• Secondary voltage: 45,000 V
• Spark energy: 135-150 mJ
• Maximum rpm: 15,000 rpm
• Mounting type: surface mount
• Supplied with: mounting hardware
• Warranty: 1 year, limited manufacturer warranty
• Package (L × W × H): 28 × 26 × 7.7 cm
• Weight: 1.18 kg

ref. 6423. Available from JDM Distribution, wholesaler for professionals. Delivery across Europe.
