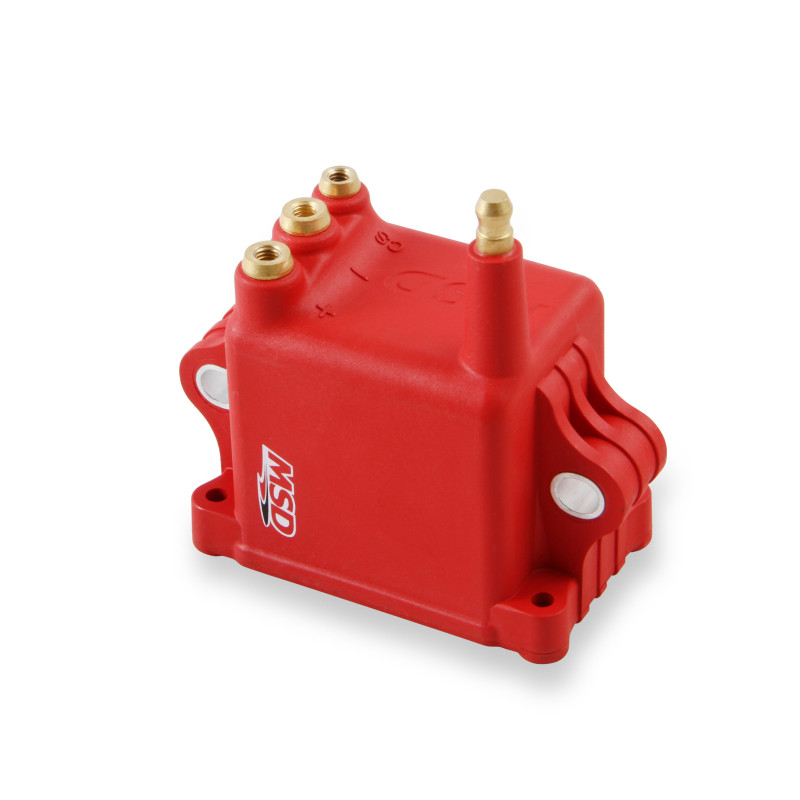

Pro CDI 600 Coil, Single

Pro CDI 600 Coil, Single

MSD ignition coil for tuned and competition engines. Ideal for improving combustion quality on a modified engine.

Key features

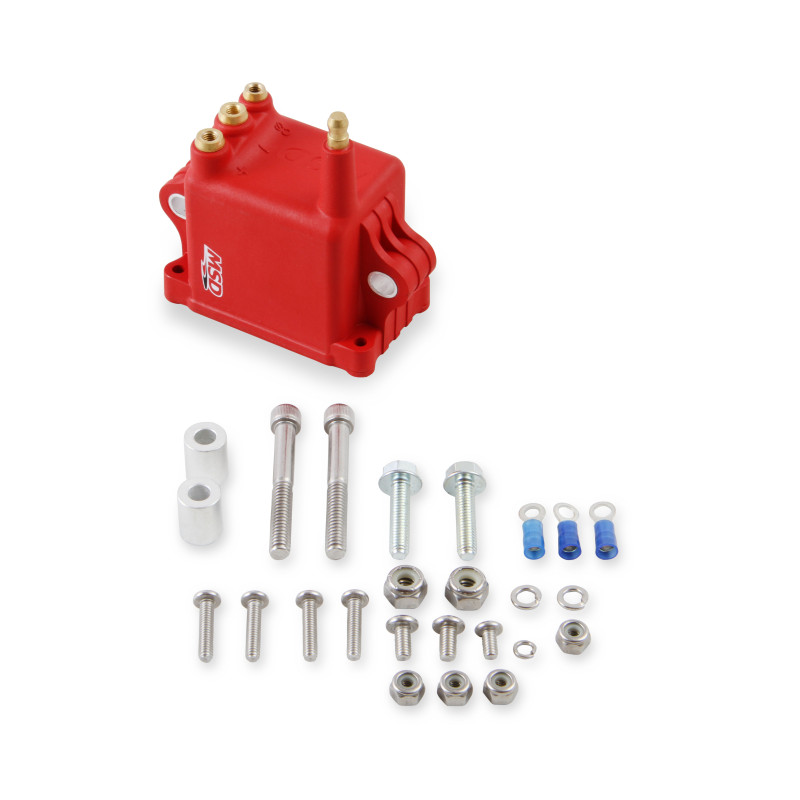

• Supplied with hardware to mount horizontal or vertical position
• Over 200 millijoules of spark energy makes them ideal for use with methanol, ethanol, E85 and forced induction and power adder combinations
• Designed for extreme racing for the Pro 600 Capacitive Discharge Ignition, PN 8000
• Coils are designed to be mounted on Holley's LS valve covers, or Original Equipment LS passenger car coil brackets using 72mm bolt spacing
• HEI style secondary tower for secure coil wire connection
• Capable of up to 50,000 Volts to ignite extreme cylinder pressures

Specifications

• Colour: red
• Maximum voltage: 50,000 V
• Spark energy: 208 mJ
• Spark duration: 0.345 ms
• Primary resistance: 0.064 ?
• Secondary resistance: 466 ?
• Turns ratio: 2.33
• Inductance: 500 mH
• Peak current: 1700 mA
• Warranty: 1 year, limited manufacturer warranty
• Package (L × W × H): 14.0 × 12.2 × 8.4 cm
• Weight: 455 g

Good to know

• This coil comes with a 3rd terminal, and highly recommended to ground to cylinder heads, failure to properly ground can result in Ignition unit failure
