Coil for MSD 6-EFI Ignition

Coil for MSD 6-EFI Ignition

MSD ignition coil for tuned and competition engines. Ideal for improving combustion quality on a modified engine.

Key features

• Designed to work with the MSD 6EFI Ignition part number 6415 and can also be used with other MSD 6-series ignition boxes such as a 6AL part number 6425

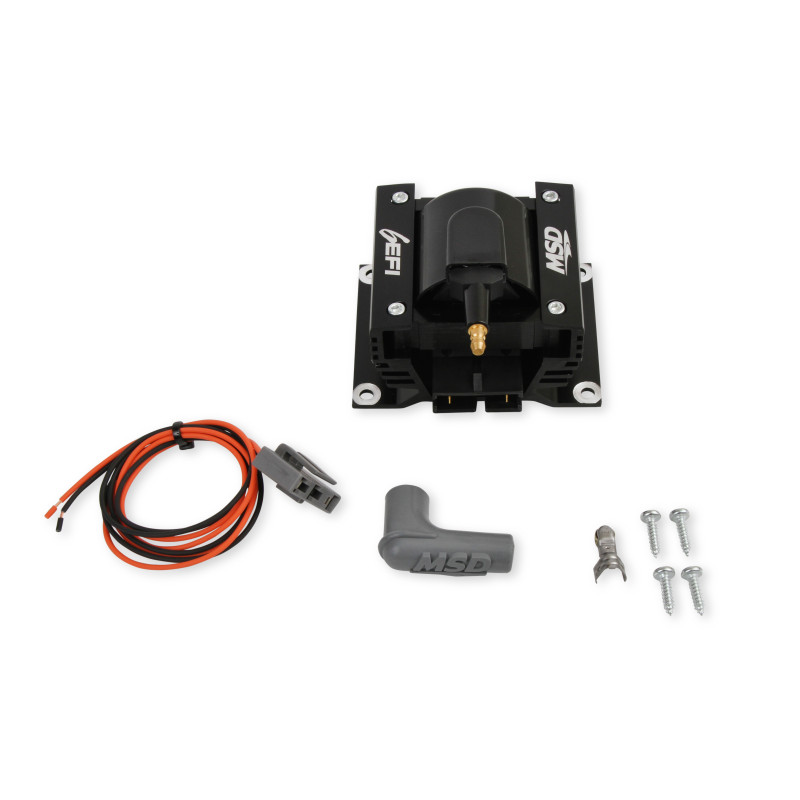

• An MSD spark plug wire boot and terminal come in the kit to convert your existing coil wire from a female, socket connection to a male high energy ignition (H.E.I.) connection if needed

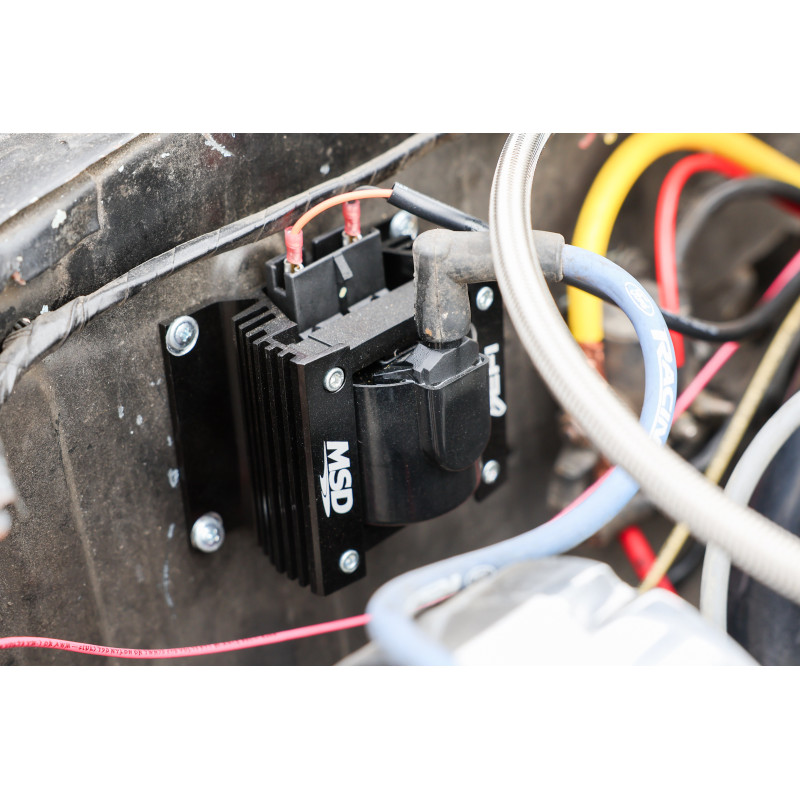

• The black housing and laser-etched black anodized mounting bracket add great looks and a solid mounting point
• Produces high spark energy to ensure the air and fuel in your engine get burned completely to improve starting, throttle response, and supply powerful spark throughout the RPM range
• Provided with a plug-in wiring harness with wire colors that match the 6EFI ignition for an easy installation
• Four, self-tapping screws are supplied for mounting the coil

Specifications

• Colour: black
• Maximum voltage: 45,000 V
• Spark duration: 0.3 ms
• Primary resistance: 0.43 ?
• Secondary resistance: 4.6 k?
• Turns ratio: 3.33
• Inductance: 4.34 mH
• Peak current: 300 mA
• Warranty: 1 year, limited manufacturer warranty
• Package (L × W × H): 17.8 × 12.4 × 10.7 cm
• Weight: 1.02 kg

Good to know

• Coil output specs obtained when used with the MSD 6EFI ignition box part number 6415.

ref. 86415. Available from JDM Distribution, wholesaler for professionals. Delivery across Europe.
