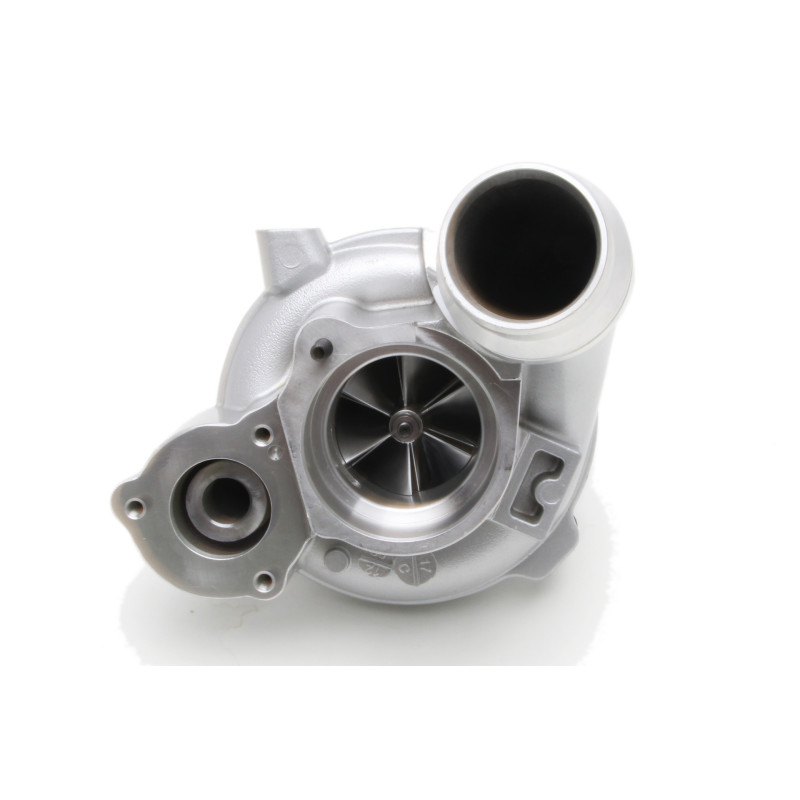

Dinan Turbocharger - 2012-2019 BMW 'F' Chassis N55

Dinan Turbocharger - 2012-2019 BMW 'F' Chassis N55: Part number D310-0110A

Technical specifications

• Details: N55 engine platform - Electronic wastegate
• Height (in): 9
• Estimated install time (h): 11.5
• Length (in): 14
• Part type: Turbocharger
• Weight (lbs): 13
• Width (in): 14

Key features

• Larger CNC-machined compressor/impeller wheel that provides ~30% greater flow over stock, which in turn allows additional boost to be realized while retaining efficiency.
• Turbo assembly is compatible with electronic wastegate vehicles only.
• Peak power w/ Stage 2 Flash (M2): 417 BHP @ 6500 RPM and 440 LB-FTs @ 3500 RPM, with max gains of 48 BHP @ 4000 RPM and 64 LB-FTs @ 3000 RPM with software, turbo, and intercooler on 93 octane. Race gas options also available.
• Peak power w/ Stage 2 Flash (Non-M2): 384BHP @ 5500 RPM and 439 LB-FTs @ 3500 RPM, and a max gain of 122 BHP @ 4500 RPM and 162 LB-FTs @ 3000 RPM with software, turbo, and intercooler on 93 octane. Race gas options also available.
• Dinan installation instructions detail a procedure quicker than BMW's turbo replacement procedure, saving the end user money and time at the repair shop (applicable to RWD vehicles only).
• Includes O-rings and gaskets needed for complete installation on an RWD vehicle only. If installing on an xDrive vehicle, Dinan P/N D313-0117 is required for additional installation hardware.
• Factory-matching new car warranty (4yr/50k) when run to Dinan specification.
• 50 State emissions legal; CARB EO # D-176-52.

Important notes

Kit only compatible with vehicles using an electronic wastegate. There is a separate kit (D310-0115) for cars equipped with a mechanical pneumatic wastegate (applies only to the 335i). Hardware supplied in the base turbo kit is only complete when installing on an RWD vehicle. If the vehicle is an xDrive, additional hardware is required to complete installation. We offer Dinan PN D313-0117 for those cases. Installation procedure requires factory-level tools such as BMW ISTA (or equivalent) to adjust the wastegate for proper operation.

Vehicle Fitment

• BMW 535i GT (2012-2017) 3.0L 6-cyl
• BMW 740Li (2013-2015) 3.0L 6-cyl
• BMW 535i GT xDrive (2012-2017) 3.0L 6-cyl
• BMW 535i (2012-2016) 3.0L 6-cyl
• BMW 740i (2013-2015) 3.0L 6-cyl
• BMW X5 xDrive35i (2014-2018) 3.0L 6-cyl
• BMW X5 sDrive35i (2014-2018) 3.0L 6-cyl
• BMW 640i (2012-2018) 3.0L 6-cyl
• BMW 640i Gran Coupe (2013-2019) 3.0L 6-cyl
• BMW 740Li xDrive (2013-2015) 3.0L 6-cyl
• BMW 640i xDrive (2014-2018) 3.0L 6-cyl
• BMW 640i xDrive Gran Coupe (2014-2019) 3.0L 6-cyl
• BMW 435i (2014-2016) 3.0L 6-cyl
• BMW 435i xDrive (2014-2016) 3.0L 6-cyl
• BMW 435i xDrive (2015-2016) 3.0L 6-cyl
• BMW 335i GT xDrive (2014-2016) 3.0L 6-cyl
• BMW M235i (2014-2016) 3.0L 6-cyl
• BMW M235i (2015-2016) 3.0L 6-cyl
• BMW 435i Gran Coupe (2015-2016) 3.0L 6-cyl
• BMW 435i xDrive Gran Coupe (2015-2016) 3.0L 6-cyl
• BMW M235i xDrive (2015-2016) 3.0L 6-cyl
• BMW M235i xDrive (2016) 3.0L 6-cyl
• BMW X4 xDrive35i (2015-2016) 3.0L 6-cyl
• BMW X4 M40i (2016-2018) 3.0L 6-cyl
• BMW X3 xDrive35i (2012-2017) 3.0L 6-cyl
• BMW M2 (2016-2018) 3.0L 6-cyl
• BMW 335i (2012-2015) 3.0L 6-cyl
• BMW X6 sDrive35i (2015-2019) 3.0L 6-cyl
• BMW X6 xDrive35i (2015-2019) 3.0L 6-cyl
• BMW 535i xDrive (2012-2016) 3.0L 6-cyl
• ... and 1 additional application(s), see the Dinan website

Fitment and technical data are provided by Dinan. Check compatibility on the Dinan website before ordering.
