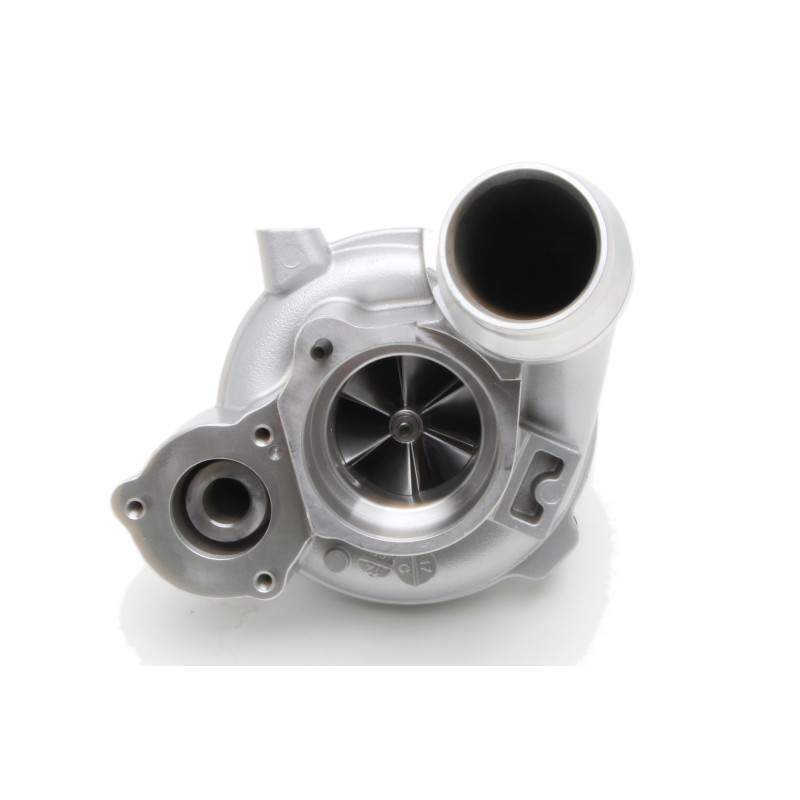

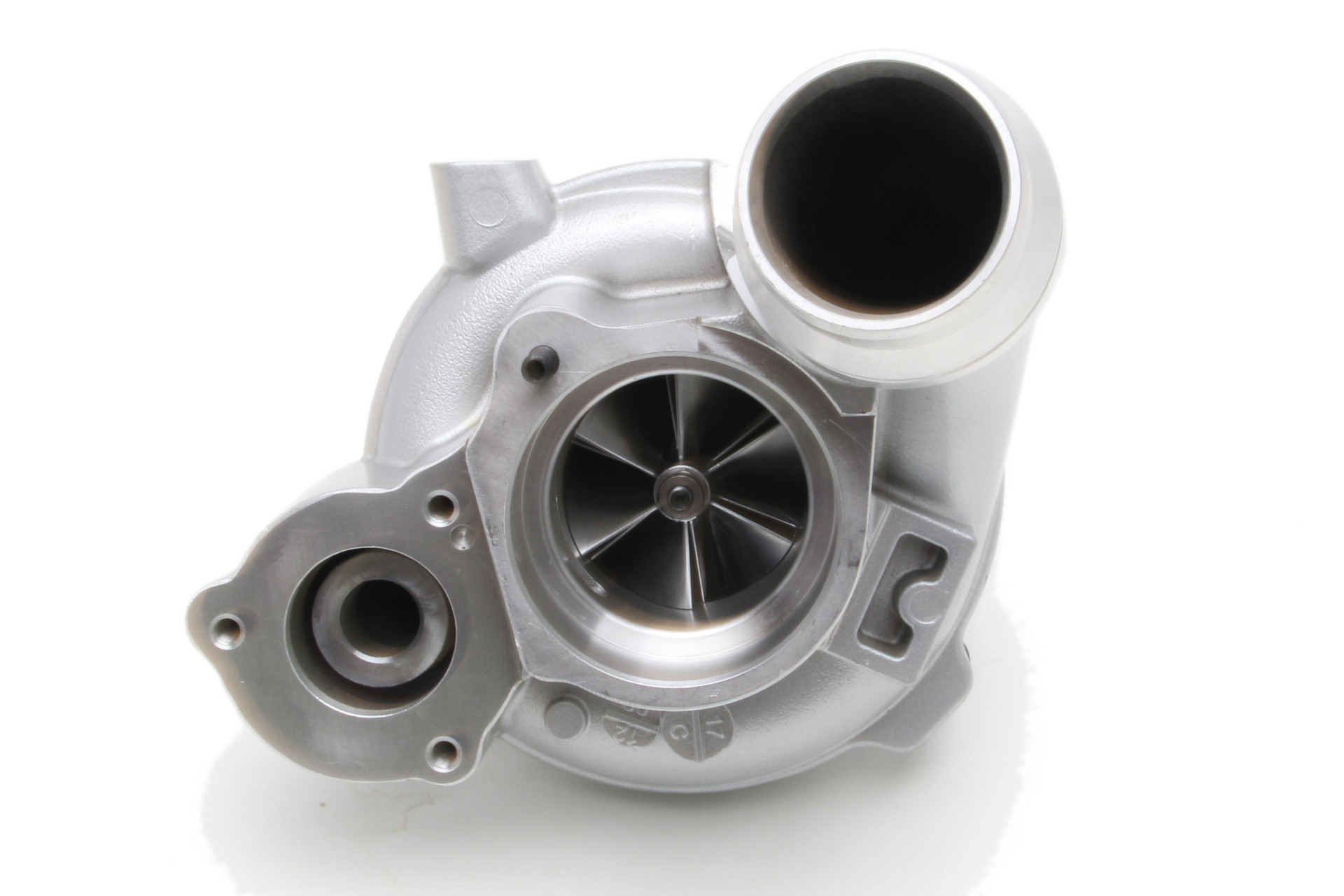

Turbocompresseur Dinan - 2012-2019 BMW 'F' Chassis N55

Turbocompresseur Dinan - 2012-2019 BMW 'F' Chassis N55 — Réf. D310-0110A

Caractéristiques techniques

• Détails : N55 Plateforme moteur - Wastegate électronique
• Hauteur (in) : 9
• Temps de pose estimé (h) : 11.5
• Longueur (in) : 14
• Type de pièce : Turbocompresseur
• Poids (lbs) : 13
• Largeur (in) : 14

Points clés

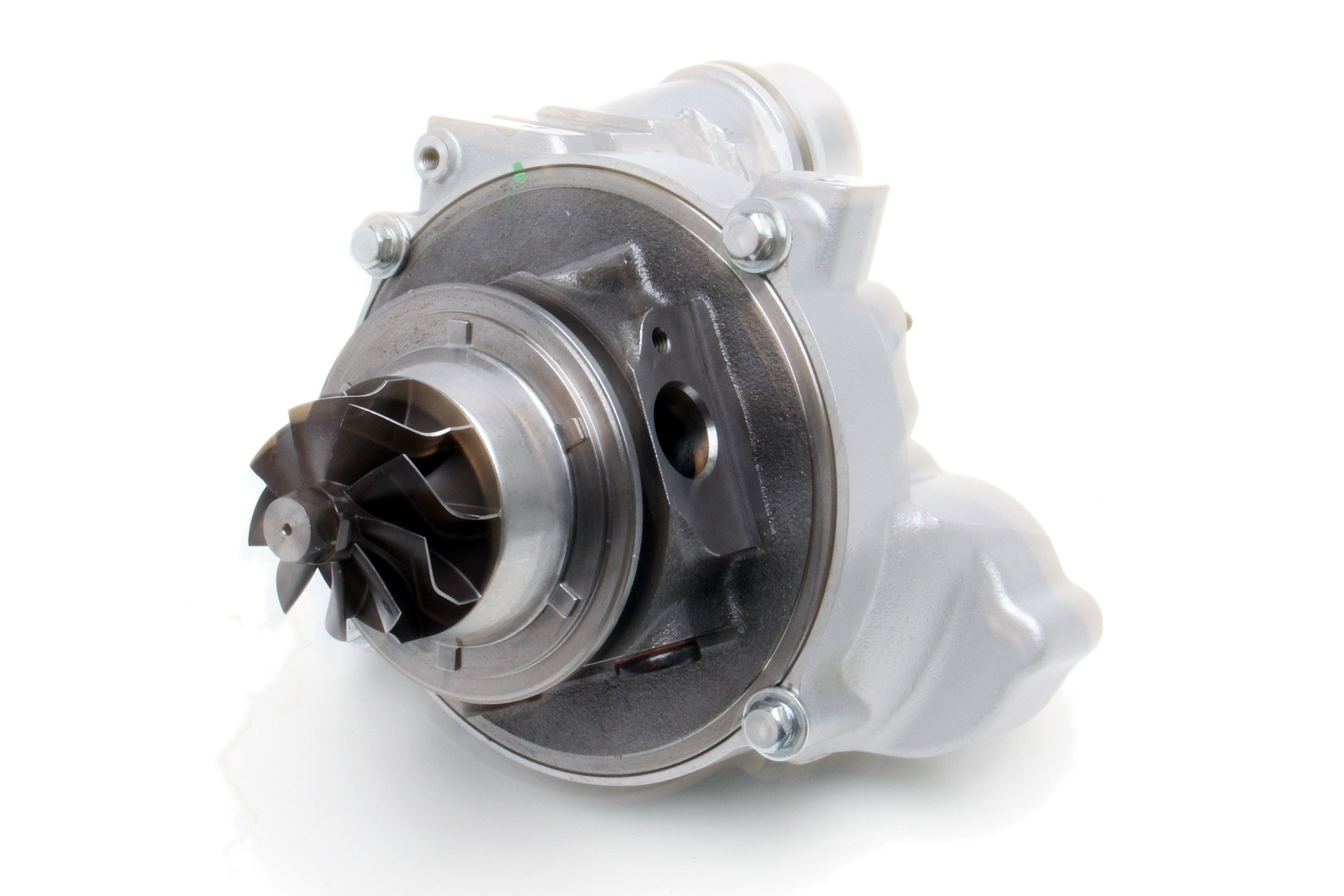

• Larger usiné CNC compressor/impeller wheel that allows ~30% greater flow over stock which then enables additional boost to be realized while retaining efficiency.
• Turbo assembly is compatible with electric wastegate vehicles only.
• Peak power w/ Stage 2 Flash (M2): 417 BHP @ 6500 RPM and 440 LB-FTs @ 3500 RPM with max gains of 48 BHP @ 4000 RPM and 64 LB-FTs @ 3000 RPM with software, turbo, and intercooler on 93 octane. Race gas options also available.
• Peak power w/ Stage 2 Flash (Non-M2): 384BHP @ 5500 RPM and 439 LB-FTs @ 3500 RPM and a max gain of 122 BHP @ 4500 RPM and 162 LB-FTs @ 3000 RPM with software, turbo, and intercooler on 93 octane. Race gas options also available.
• Dinan Installation instructions detail a procedure which is quicker than BMW's turbo replacement procedure saving the end-user money and time at the shop (Applicable to RWD vehicles only).
• Includes o-rings and gaskets needed for complete installation on a RWD vehicle only. If installing on an xDrive vehicle Dinan P/N D313-0117 is required for additional installation hardware.
• Factory matching new car warranty (4yr/50k) when run in Dinan specification.
• 50 State Emissions legal; CARB EO # D-176-52.

Remarques importantes

Kit only compatible with vehicles using an electronic wastegate. There is a separate kit (D310-0115) for cars equipped with a mechanical pneumatic wastegate (applies only to the 335i). Hardware supplied in the base turbo kit is only complete when installing on a RWD vehicle. If vehicle is an xDrive vehicle then additional hardware is required to complete installation. We offer Dinan PN D313-0117 for those cases. Installation procedure requires factory-level tools such as BMW ISTA (or equivalent) to adjust wastegate for proper operation.

Compatibilités véhicule

• BMW 535i GT (2012-2017) 3.0L 6-cyl
• BMW 740Li (2013-2015) 3.0L 6-cyl
• BMW 535i GT xDrive (2012-2017) 3.0L 6-cyl
• BMW 535i (2012-2016) 3.0L 6-cyl
• BMW 740i (2013-2015) 3.0L 6-cyl
• BMW X5 xDrive35i (2014-2018) 3.0L 6-cyl
• BMW X5 sDrive35i (2014-2018) 3.0L 6-cyl
• BMW 640i (2012-2018) 3.0L 6-cyl
• BMW 640i Gran Coupe (2013-2019) 3.0L 6-cyl
• BMW 740Li xDrive (2013-2015) 3.0L 6-cyl
• BMW 640i xDrive (2014-2018) 3.0L 6-cyl
• BMW 640i xDrive Gran Coupe (2014-2019) 3.0L 6-cyl
• BMW 435i (2014-2016) 3.0L 6-cyl
• BMW 435i xDrive (2014-2016) 3.0L 6-cyl
• BMW 435i xDrive (2015-2016) 3.0L 6-cyl
• BMW 335i GT xDrive (2014-2016) 3.0L 6-cyl
• BMW M235i (2014-2016) 3.0L 6-cyl
• BMW M235i (2015-2016) 3.0L 6-cyl
• BMW 435i Gran Coupe (2015-2016) 3.0L 6-cyl
• BMW 435i xDrive Gran Coupe (2015-2016) 3.0L 6-cyl
• BMW M235i xDrive (2015-2016) 3.0L 6-cyl
• BMW M235i xDrive (2016) 3.0L 6-cyl
• BMW X4 xDrive35i (2015-2016) 3.0L 6-cyl
• BMW X4 M40i (2016-2018) 3.0L 6-cyl
• BMW X3 xDrive35i (2012-2017) 3.0L 6-cyl
• BMW M2 (2016-2018) 3.0L 6-cyl
• BMW 335i (2012-2015) 3.0L 6-cyl
• BMW X6 sDrive35i (2015-2019) 3.0L 6-cyl
• BMW X6 xDrive35i (2015-2019) 3.0L 6-cyl
• BMW 535i xDrive (2012-2016) 3.0L 6-cyl
• ... et 1 application(s) supplémentaire(s) — consulter le site Dinan

Les affectations et données techniques sont fournies par Dinan. Vérifiez la compatibilité sur le site Dinan avant de commander.
