Dinan Full Exhaust System - 2020-2025 BMW X3M/X4M

Dinan Cat-Back Exhaust for BMW X3M/X4M 2020-2025 (Part No. D660-0086)

Technical

• specifications Details: Stainless steel - Polished Tips - F97/F98
• Body material: T304
• stainless steel clamps included: Yes
• Exhaust tip quantity: 4
• Finish:
• Brushed Grade type: Performance
• Brackets included: Yes
• Height (in): 10
• Estimated installation time (h): 2.5
• Length (in): 54
• Material: T304 stainless steel
• Max power gain (hp): 8 @ 6600 rpm
• Max torque gain (lb-ft): 6 @ 6600
• rpm Pipe material: T304 stainless steel
• Part type: Shaft-Back
• Tip finish:
• Polished Weight (lbs): 72
• Width (in): 29

Key points

• Power gain: +8 hp @ 6600 rpm, +6 ft-lb @ 6600 rpm.

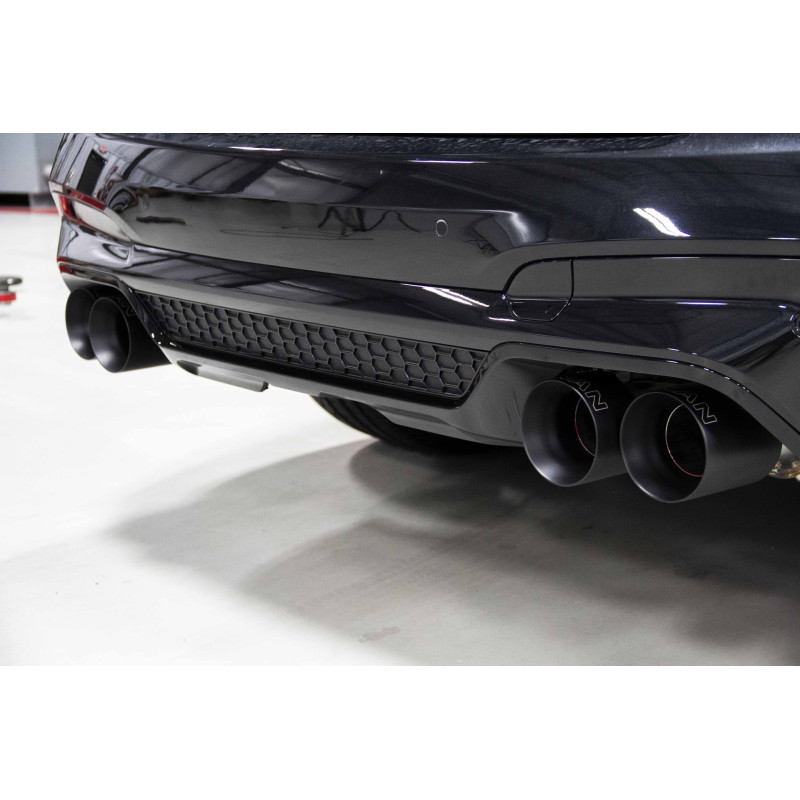

• Quad 4.5" (114 mm) double-wall clamp-on exhaust tips, polished and laser-etched, sounding pleasantly
• louder and sportier.
• The tuck-it tip design provides a nearly perfect, unobstructed visual appearance.
• 100% brushed 304 stainless steel construction with TIG welds.
• Larger-diameter piping for increased flow (76 mm vs. 70 mm).
• 5 lbs lighter than the OE system.
• Computer-controlled exhaust valves were retained, reducing noise during low-speed driving and fully opening under high load.
• The dual exhaust valves measure an impressive 76 mm in diameter, making them 30% less restrictive than OE valves.
• Easy bolt-on installation with included mounting hardware.

Vehicle fitment

• BMW X4 M (2020-2025) BMW X4 M 3.0L 6-cylinder
• Competition (2020-2025) BMW X3 M 3.0L 6-cylinder
• (2020-2024) 3.0L 6-cylinder
• BMW X3 M Competition (2020-2024) 3.0L 6-cylinder

Fitment and technical data provided by Dinan. Check compatibility on the Dinan website before ordering.
