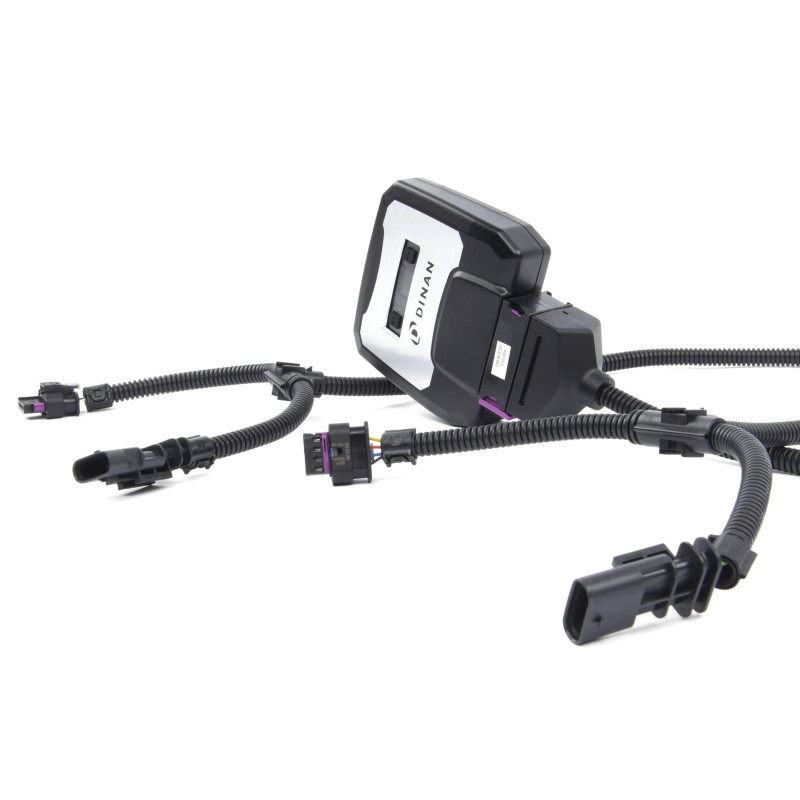

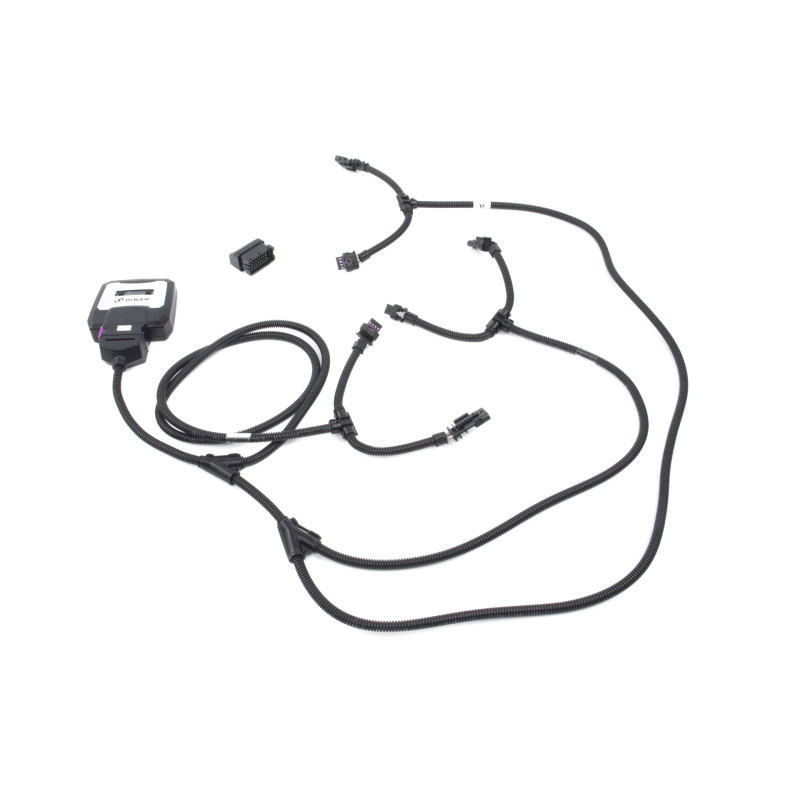

Dinan Fuel Injection Calibration Module

Dinan Add-on Module, Part No. D440-0166

Technical

• specifications Details: B58TU Engine (G)
• Stock power (hp): 382 (417 measured)
• Stock torque (lb-ft): 368 (440 measured)
• Estimated install time (h): 1
• Max power gain (hp): 62 @ 5000 RPM
• Max torque gain (lb-ft): 71 @ 3500 RPM
• Peak power reached (hp): 467 @ 5000 RPM
• Power gain at peak (hp): 32 @ 6000
• RPM Peak torque reached (lb-ft): 509 @ 3500 RPM
• Torque gain at peak (lb-ft): 57 @ 4000 RPM
• Part type: Inline
• module Warranty: 1 year/Unlimited miles

Key

• features More power: maximum gains up to +62 hp and +71 lb-ft TRQ (crank); +55 hp and +63 lb-ft TRQ (wheel).
• Smart Bluetooth (compatible with Android and iOS). The app download and pairing process is detailed in the installation instructions found in the Technical Resources dropdown below.
• 7 power levels and one bypass setting of your choice.
• Smooth, predictable power delivery.
• On-board diagnostics and factory protections have been retained.
• Not affected by dealer factory updates.
• Plug and play installation.
• 14-day satisfaction guarantee.
• One-year limited warranty.

Important notes

DINANTRONICS X does not benefit from the factory calibration warranty for which Dinan is known. The DINANTRONICS X warranty is a one-year, product-only warranty that does not cover consequential damages or labor reimbursement.

Vehicle compatibility

• Toyota GR Supra Premium (2020) 3.0L 6-cylinder
• Toyota GR Supra (2020) 3.0L 6-cylinder

Fitment and technical data are provided by Dinan. Check compatibility on the Dinan website before ordering.
