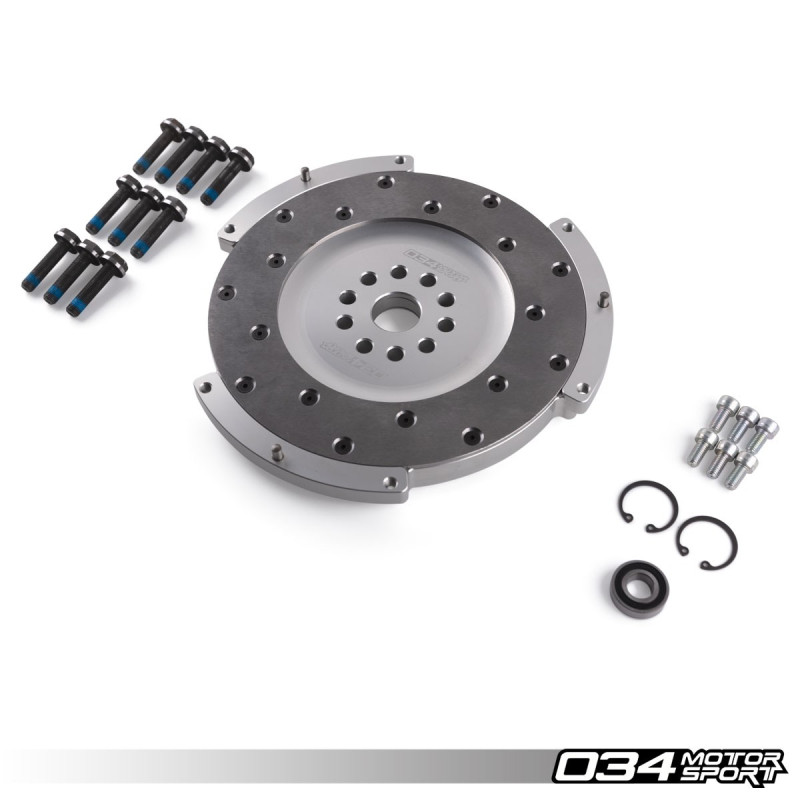

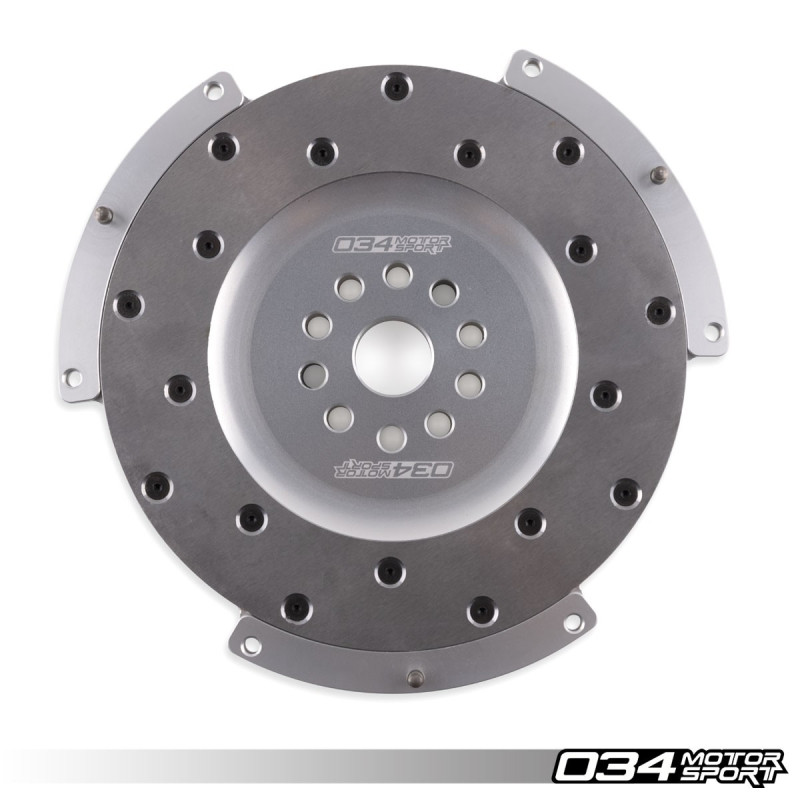

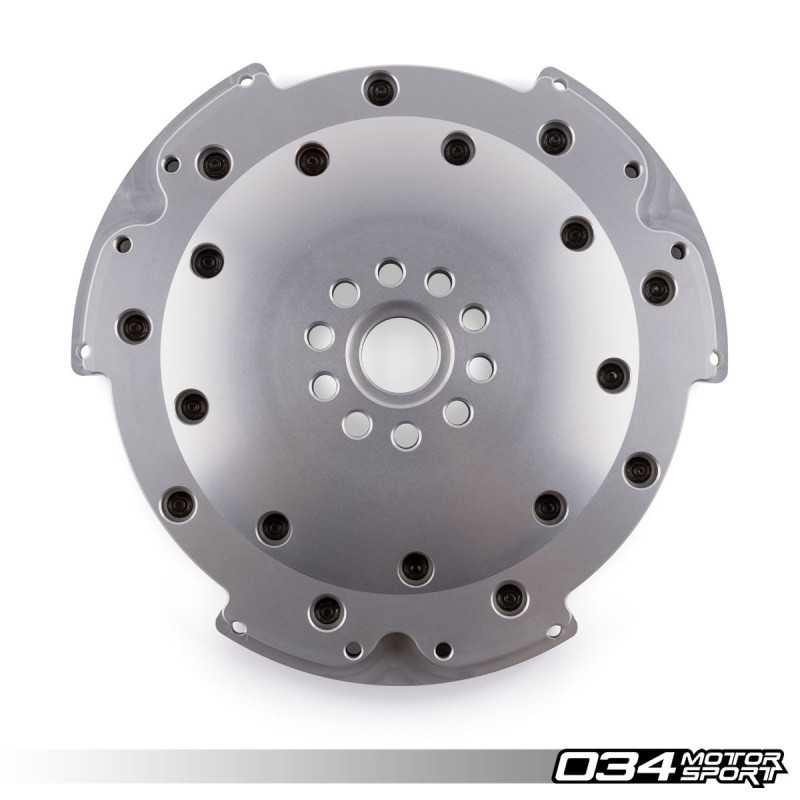

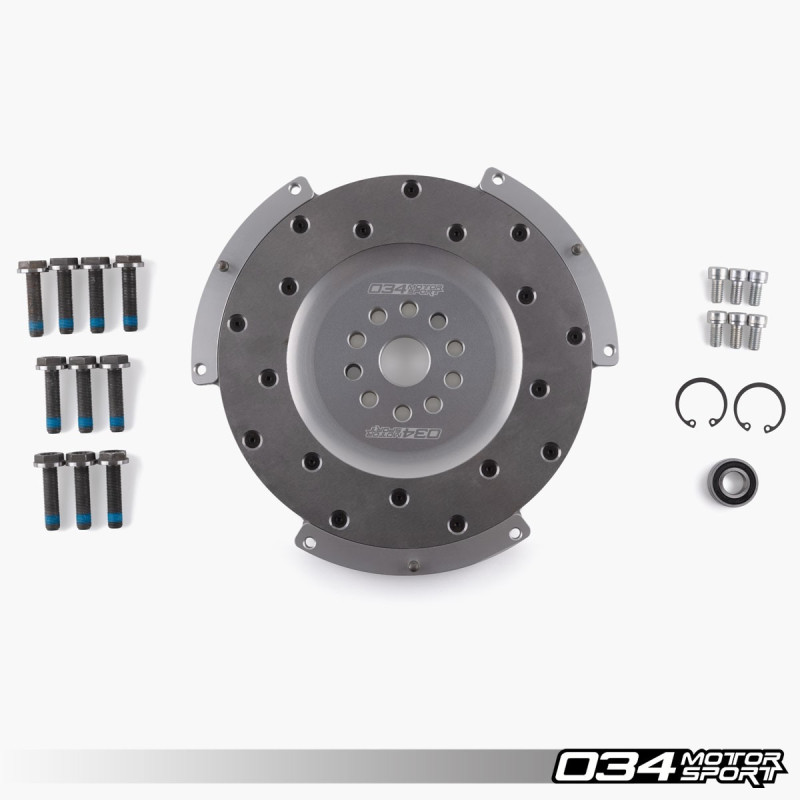

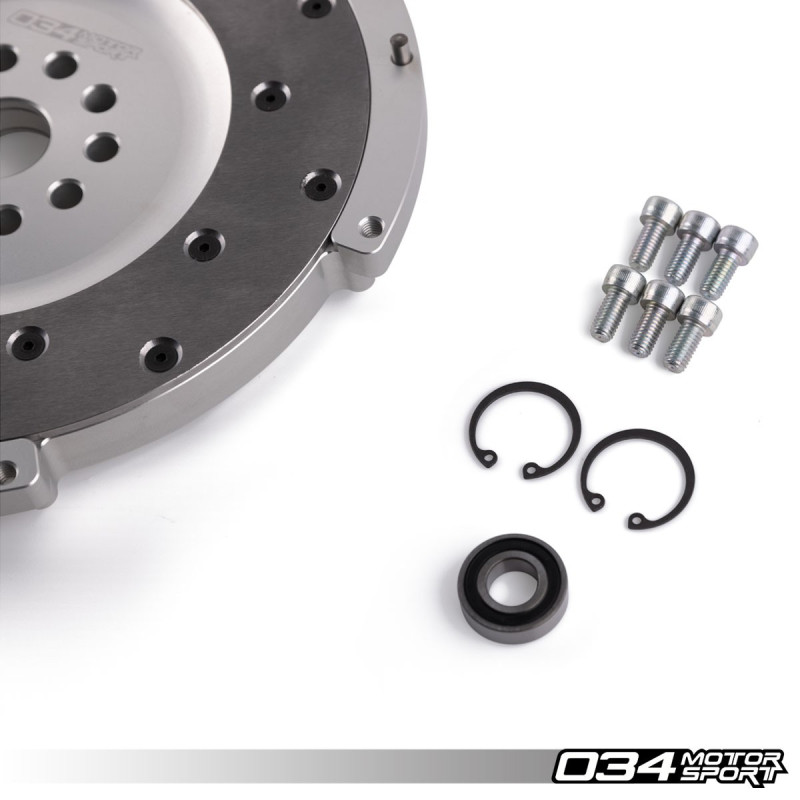

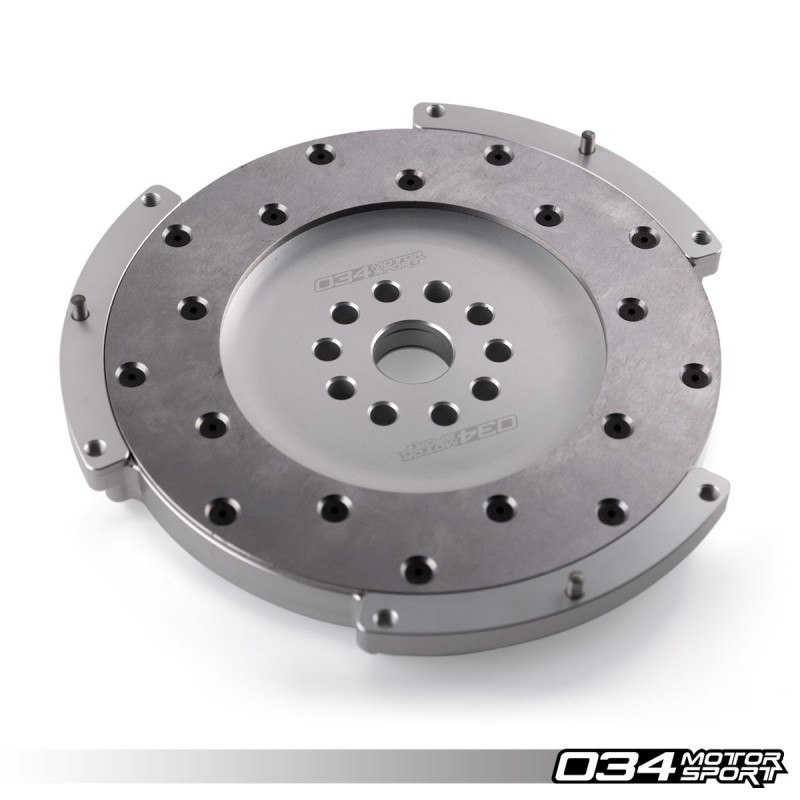

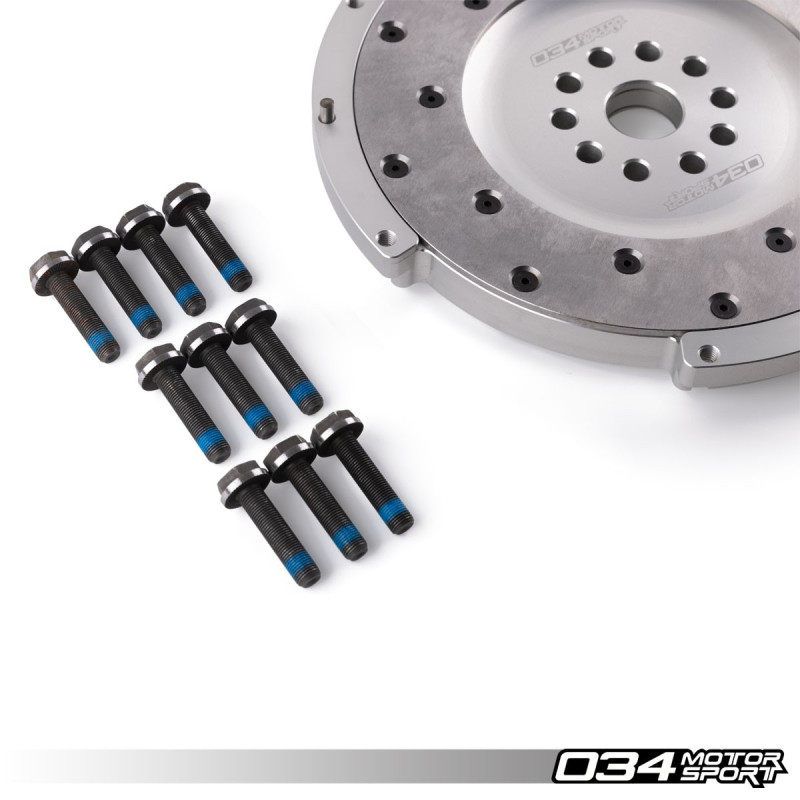

Flywheel Insert 034Motorsport for engines Audi ABZ

Flywheel Insert 034Motorsport for engines Audi ABZ.

• Reference: 034-503-1017
• Brand: 034Motorsport
• Category: Drivetrain - Flywheel
• Fitment: Engines Audi ABZ

Features

• Insert for a late-model ABZ automatic flex plate; retains the factory starter ring gear and 60-2 tone wheel (factory Motronic or standalone engine management)
• CNC-machined 6061 aluminium with steel friction surface and clutch mounting provisions
• For 01A and 01E transmissions, UrS4/S6 clutch kits, all 10-bolt V8 engines
• Requires a factory ABZ flex plate with an outer ring height of about 7 mm; earlier plates with a 10 mm or larger step need modification
• Assembled weight with flex plate: about 6.8 kg (15 lb)
• With a factory Motronic ECU, the VR sensor must be moved to the automatic transmission position; minor bellhousing rib clearance may be needed on some quattro transmissions

Detailed 034Motorsport applications

• Audi: 80/90 Series B3, I4 8V/I4 16V/I5 10V - NG/I5 20V - 7A, 1988-1991 ; 80/90 Series B4, I4 16V/2.8L V6 12V, 1992-1996 ; 100/200 Series C3, I5 10V - NF/I5 10VT - MC2/I5 20VT - 3B, 1989-1991 ; Coupe Quattro B3, I5 20V - 7A, 1990-1991 ; UrQuattro B2, I5 10VT, 1983-1986 ; V8 Quattro C3, 3.6L V8 32V - PT/4.2L V8 32V - ABH, 1988-1993 ; Coupe GT B2, I4 8V/I5 10V, 1980-1988 ; 4000 B2, I4 8V/I5 10V - JT, 1980-1987 ; 5000 C3, I5 10V/I5 10VT - KH/I5 10VT - MC1, 1982-1988

Check vehicle compatibility before ordering.
