Clamshell Charge Pipe Reinforcement Kit 034Motorsport for Audi RS4/RS5 B9 (EA839)
Clamshell Charge Pipe Reinforcement Kit. Fits: Audi RS4/RS5 B9 (EA839). Manufacturer 034Motorsport, Ref. 034-145-Z062.
?
Available from the manufacturer
24+ in stock at factory
Expected delivery to you on Nov 5, 2026
This lead time is an estimate and may change due to circumstances beyond our control
Pricing and ordering reserved for professionals.
Free sign-up, instant trade pricing. Gold discount from your first order of €1,000 excl. VAT, no negotiation needed.
Create a trade account in 2 minAlready a customer? Log in
Clamshell Charge Pipe Reinforcement Kit 034Motorsport for Audi RS4/RS5 B9 (EA839).
- Reference: 034-145-Z062
- Brand: 034Motorsport
- Category: Engine - Air / turbo hoses
- Fitment: Audi RS4/RS5 B9 (EA839)
Features

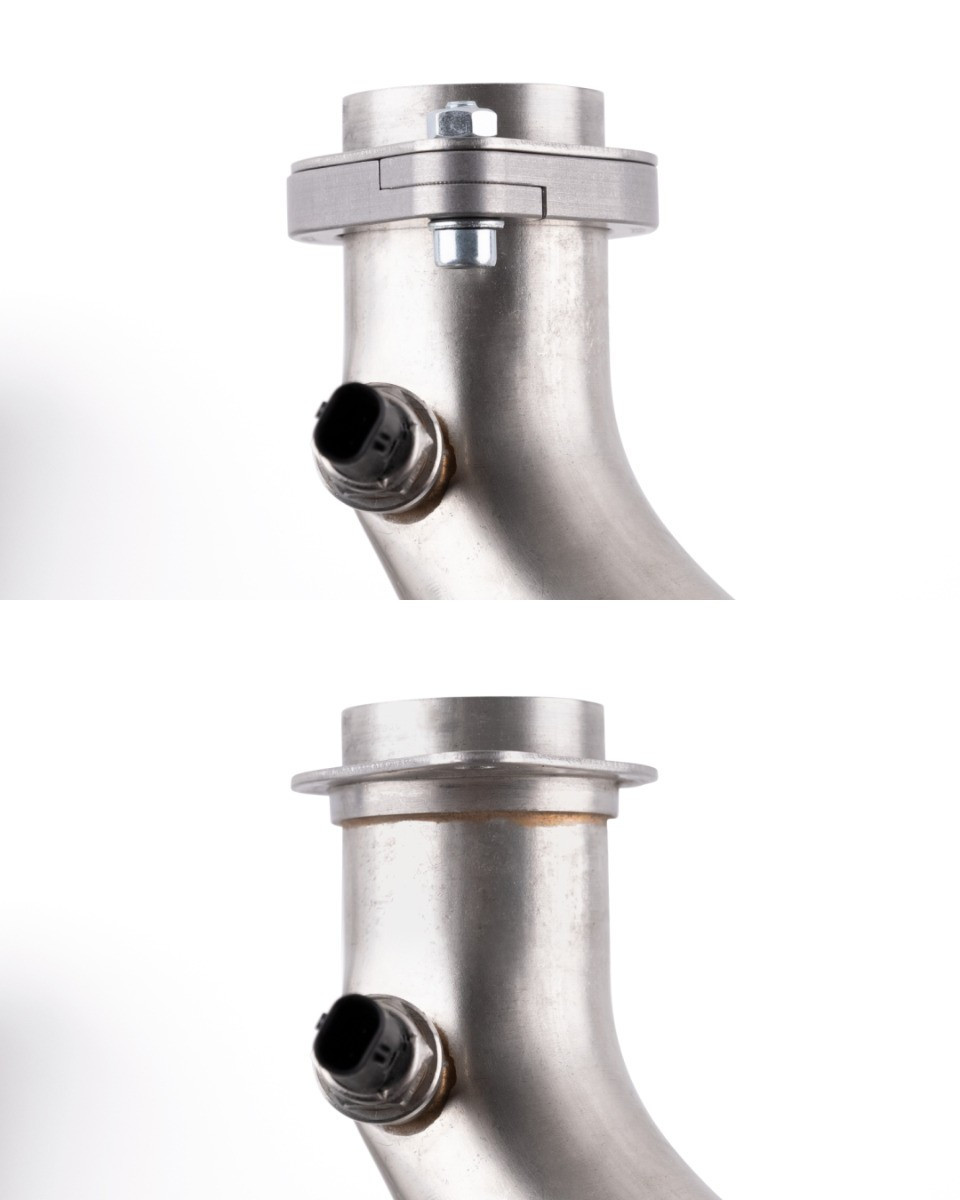

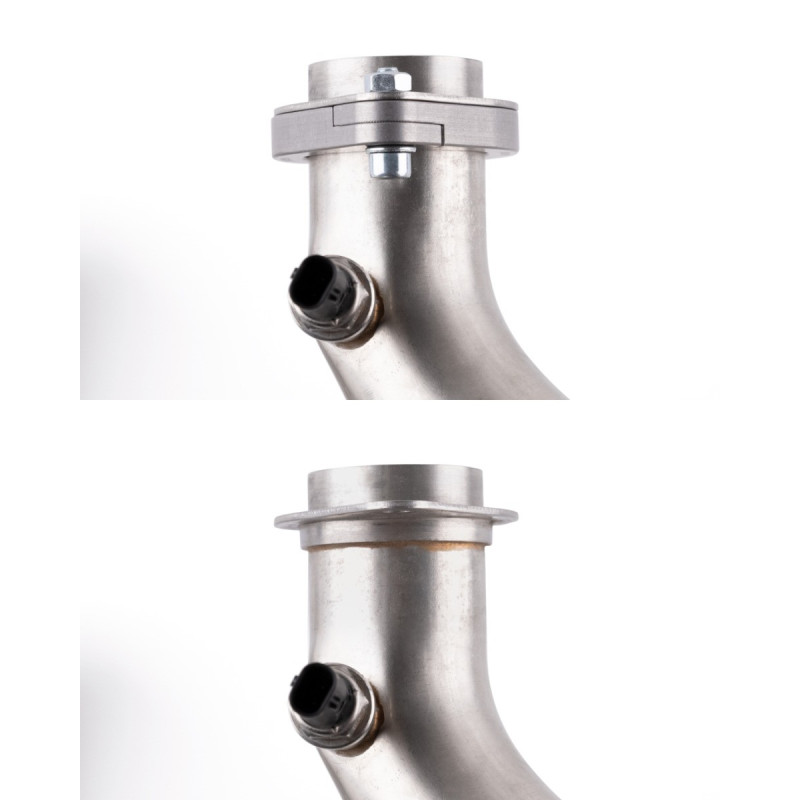

- Reinforces the factory brazed joint at the charge pipe turbo flanges, which bend and crack under high boost

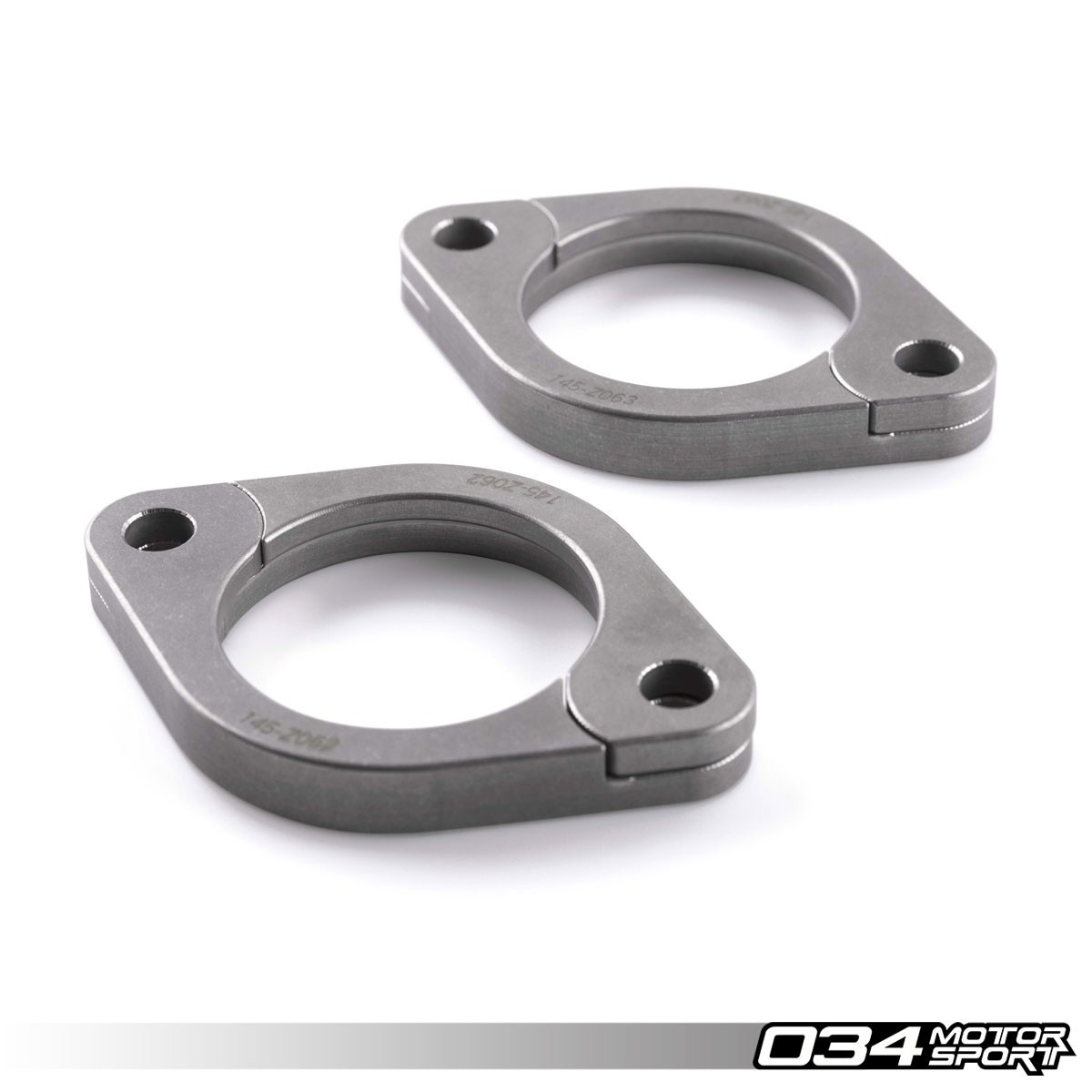

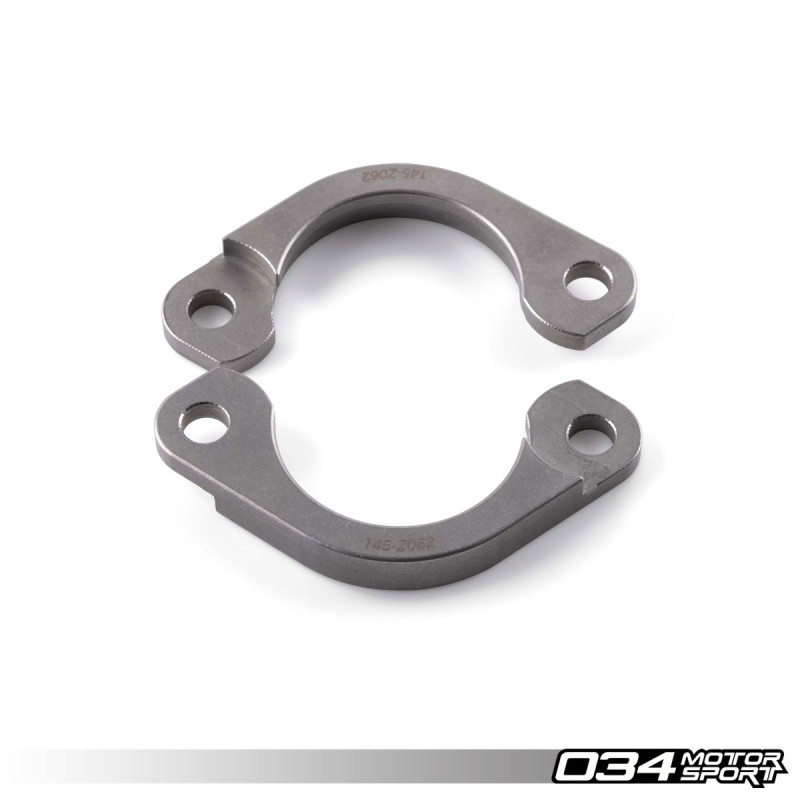

- CNC-machined 10 mm thick 304 stainless steel clamshells
- Tested at over 40 psi (about 2.8 bar) of charge pressure
- Recommended as a preventive measure, especially on high-boost Stage 3 builds

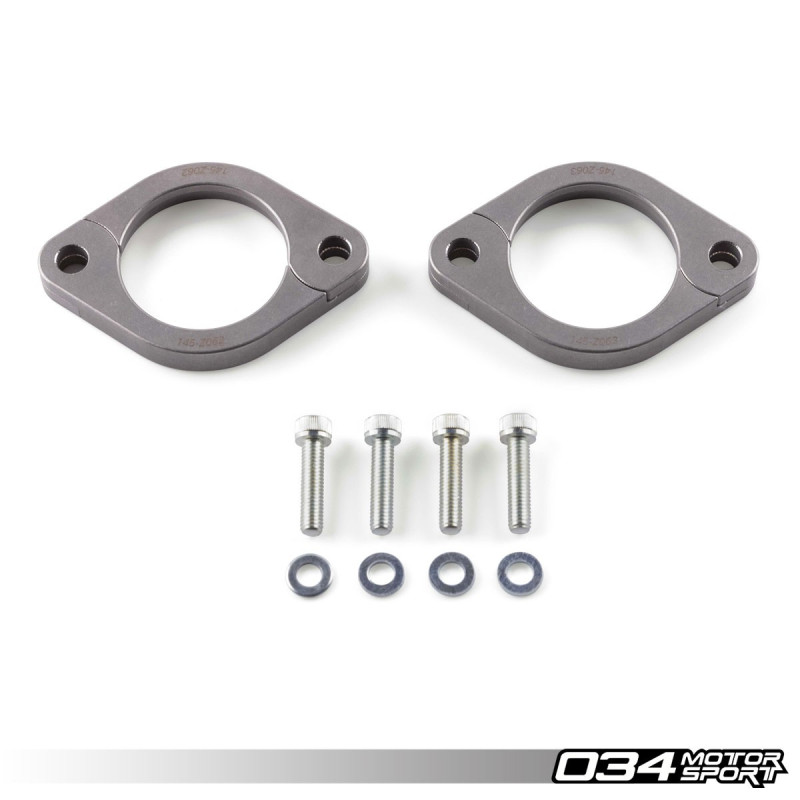

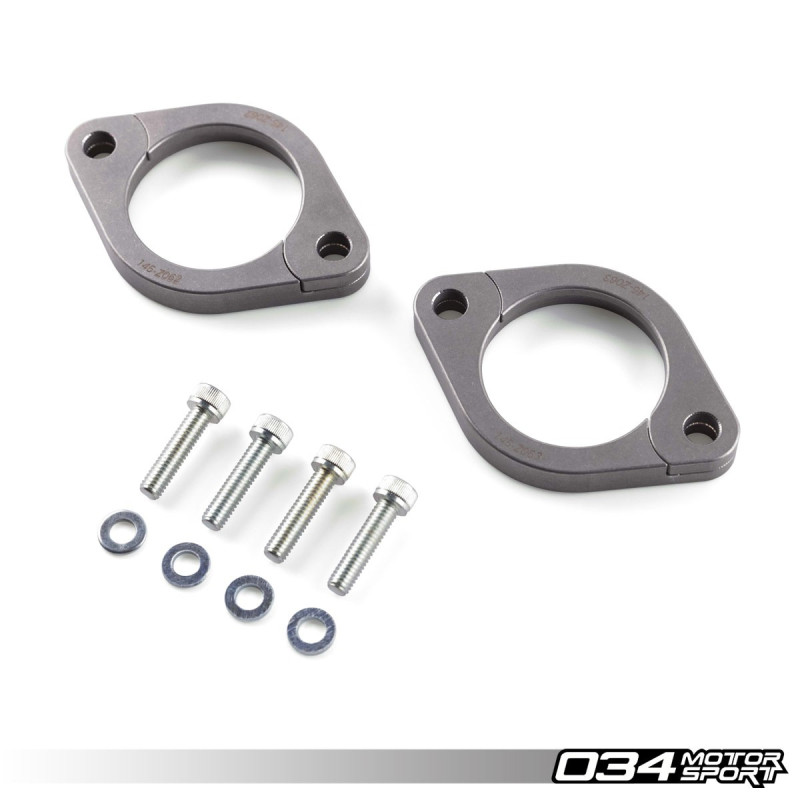

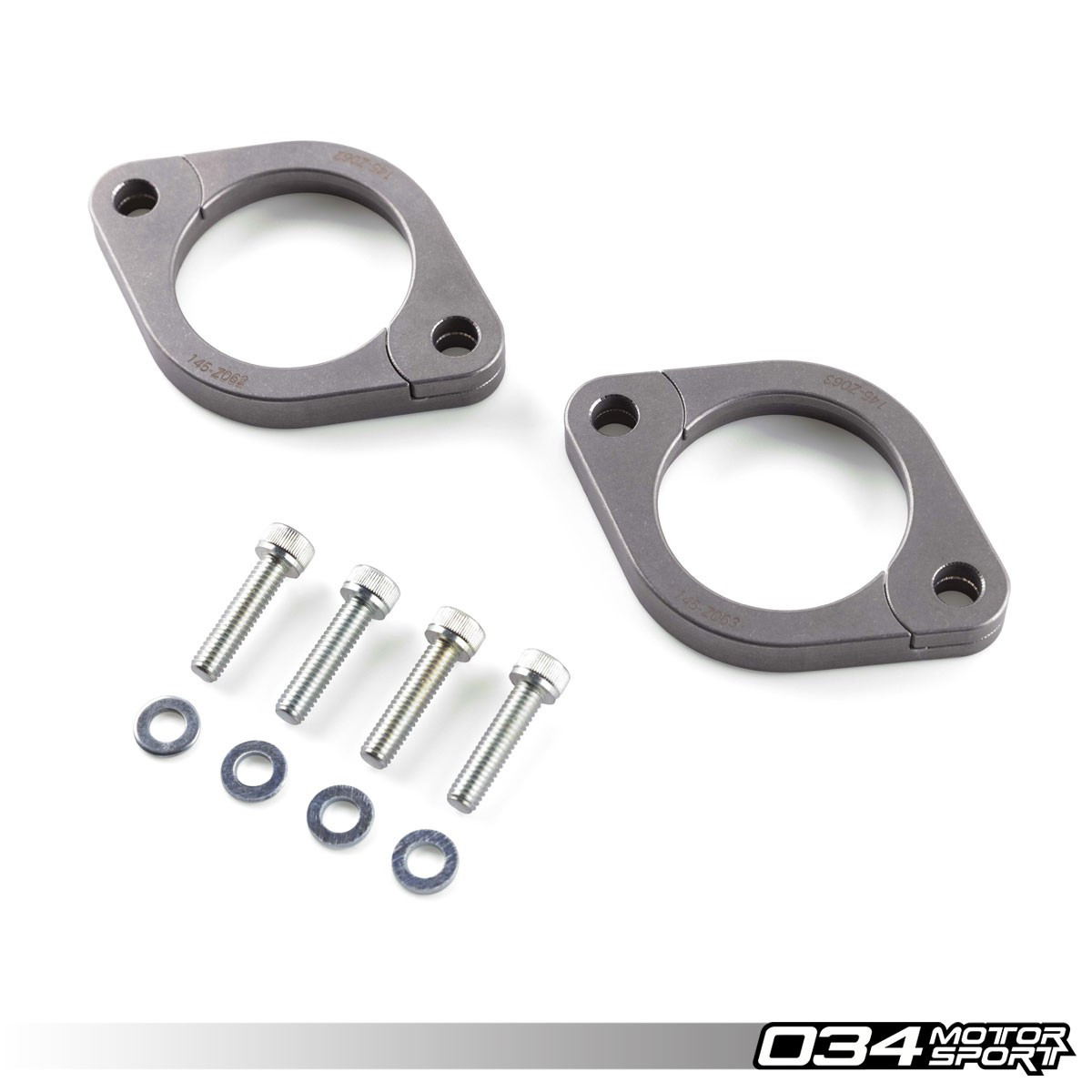

Included
- 2 upper clamshell halves
- 2 lower clamshell halves
- Required hardware
Detailed 034Motorsport applications
- Audi: RS4/RS5 B9/B9.5, 2.9 TFSI, 2018-2025 ; S6/S7 C8, 2.9 TFSI, 2019+
- Porsche: Macan GTS/Macan Turbo 95B.2, 2.9T FSI, 2020-2021 ; Macan GTS/Macan S 95B.3, 2.9T FSI, 2022+
Check vehicle compatibility before ordering.
Compatible vehicles (2)
AUDI
(2)
▼
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| RS4 B9 (05/2016 - 2025) | 2.9 TFSI (450 cv) | essence | 2900 cc | 450 cv | 2016+ |
| RS5 Coupé/Sportback (B9) (05/2016 - 2025) | 2.9 TFSI (450 cv) | essence | 2900 cc | 450 cv | 2016+ |
| Product family: | Engine |
|---|---|
| Engine | Air or turbo hoses |
