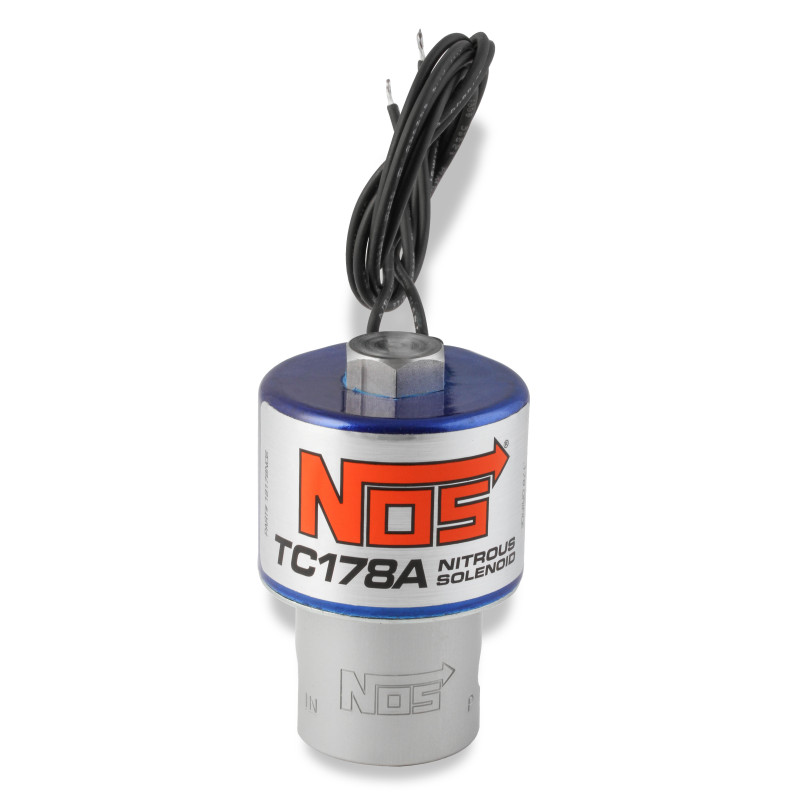

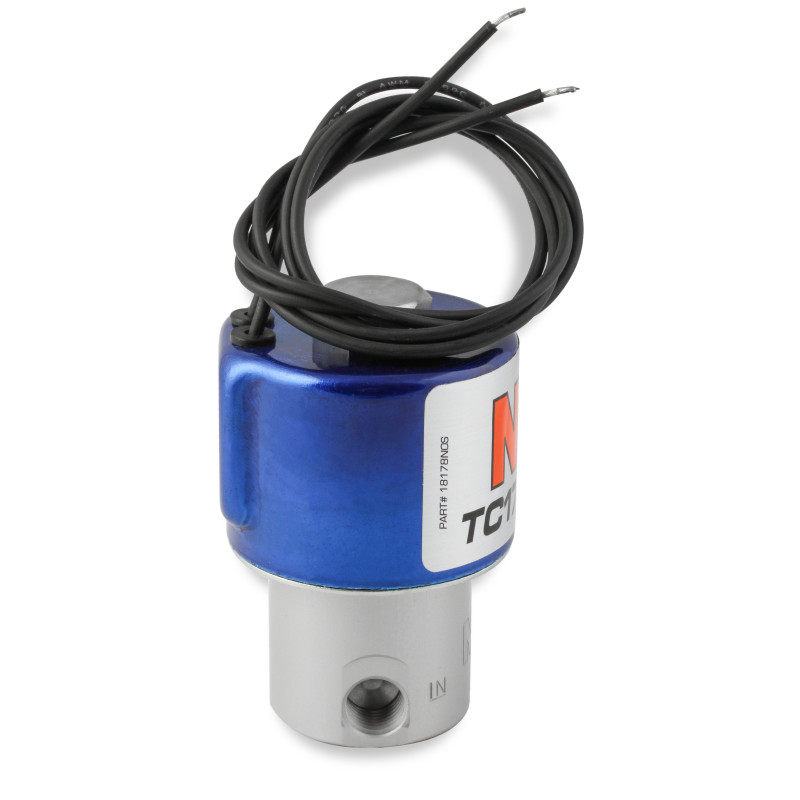

TC178 High-Flow Nitrous Solenoid - 0.178 inch Outlet Orifice, Blue
NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid.
Pricing and ordering reserved for professionals.
Free sign-up, instant trade pricing. Gold discount from your first order of €1,000 excl. VAT, no negotiation needed.
Create a trade account in 2 minAlready a customer? Log in
NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17
Current Draw is 20 Amps at 12 volts DC.
This Solenoid can be used with a progressive controller
Key features
- Supports in excess of 900 horsepower
- Inlet Port Size - 1/4" NPT (Sid PI)
- Outlet Port Size - 1/8" NPT (Botto PI)
- Purge Port Size - 1/8" NPT (Sid PI)
- Orifice - 0.178"
- Plunger - PTFE
- Light Weight Aluminum - 1.66 lbs.
- Material - 6061 Aluminum
- Saves 1/4 lb. over similar steel solenoids
Technical specifications
- Brand: NOS (Nitrous Oxide System PI)
- Manufacturer part number: 18178NOS
- Maximum power: 900 HP
- Solenoid cover colour: Blue
- Plunger material: PTFE
- Orifice: 0.178 in
- Current draw: 20 A
- Finish: Natural
- Inlet: Side
- Inlet connection: Female Threads
- Inlet thread: 1/4 NPT
- Material: 6061-T6 Aluminum
- Outlet: Bottom
- Outlet connection: Female Threads
- Outlet thread: 1/8 NPT
- Purge port: 1/8 NPT
Good to know
- The TC178 offers a 1/8" NPT bottom exit and a 1/8" NPT purge port. The side purge port must be plugged if not used.
Important: this product runs on nitrous oxide (N2 PI), a gas we do not supply and which is currently difficult to obtain. It is your responsibility to find a local supplier of gas for professionals. NOS bottles do not comply with CE standards (they do not carry the PI mark): only CE-approved bottles may be used. European manufacturers offer bottles approved to contain this gas; please check the applicable standards and verify the manufacturer's origin and compliance before purchasing. NOS fittings are not metric (AN / NPT threads depending on the part numbe PI): plan for the adapters needed for your installation. Please comply with the regulations in force in your country.
| Product family: | Engine |
|---|---|
| Engine | Électrovannes nitro |
| Color: | Blue |
