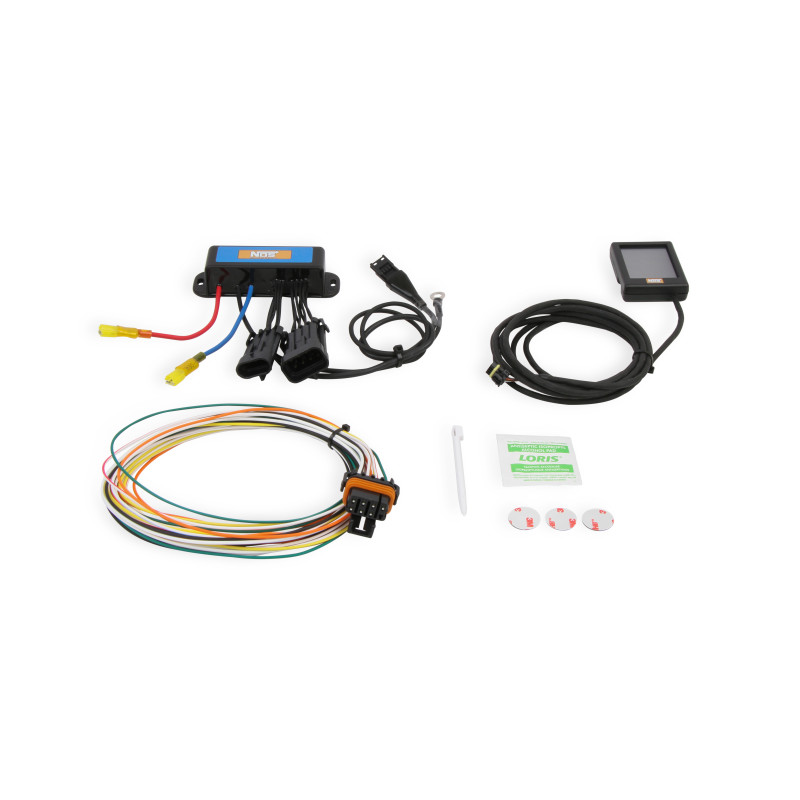

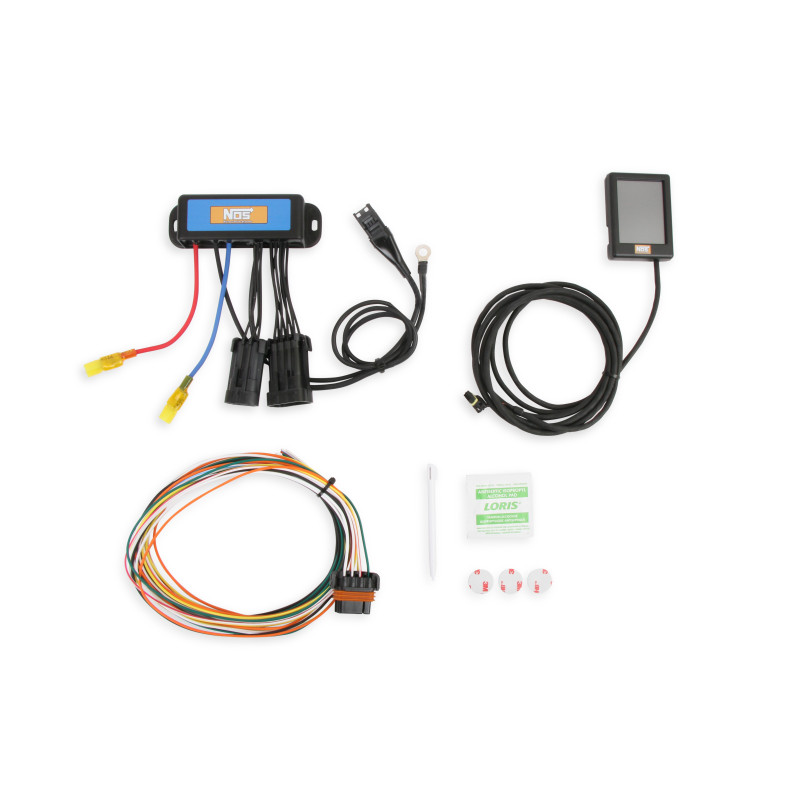

Progressive Two-Stage Nitrous Mini Controller with Touchscreen Programmer (V2)

Getting the most out of your nitrous system and putting more power to the ground when traction is at its best is the goal of anyone using nitrous as a power adder.

The new, updated NOS Mini 2-stage progressive nitrous controller is packed with features that make that challenge much easier.

Two completely independent stages of nitrous and fuel control, each with its own throttle position activation switch and progressive ramps. RPM on/off control eliminates the need for a window switch and lets you turn the nitrous on and off at set points and conditions. Two programmable outputs allow control of timing retard or other devices. The hand-held 2.4 inch LCD touchscreen (stylus include PI) makes programming quick and simple and lets you mount the main controller housing out of sight.

The LCD also displays RPM, bottle pressure (optiona PI) and stage activation, for robust monitoring of your nitrous system.

Key features

• New Mini 2-Stage Progressive Nitrous Controller
• New Hand Held Color LCD 2.4" Touch Screen Display w/ Micro SD Memory Card to Store Tunes and Software Updates
• Touch screen Stylus included
• 2 Fully Independent Stage Outputs - Allows Programming in Any Curve Shape or With Built-in Ramp Builder Application
• Progressive Solenoid Operation Based on Time, RPM, and/or TPS (Throttle Position Senso PI) Input and Can Shut Nitrous Off at a Programmed RPM Ceiling
• Controller Housing Designed and Constructed to Handle Harsh Conditions in a Racing Environment
• Allows the User to Drive the Solenoids at Different Duty Cycles to Tailor Power Delivery to the Engine as Needed
• Optional Bottle Pressure Transducer Input Allows Precise Bottle Pressure Monitoring Without Leaving the Driver's Seat

Technical specifications

• Brand: NOS (Nitrous Oxide System PI)
• Manufacturer part number: 25974NOS
• Number of stages: 2
• Timing range: 0 - 9.9 s
• Adjustment: Touch Screen

Important: this product runs on nitrous oxide (N2 PI), a gas we do not supply and which is currently difficult to obtain. It is your responsibility to find a local supplier of gas for professionals. NOS bottles do not comply with CE standards (they do not carry the PI mark): only CE-approved bottles may be used. European manufacturers offer bottles approved to contain this gas; please check the applicable standards and verify the manufacturer's origin and compliance before purchasing. NOS fittings are not metric (AN / NPT threads depending on the part numbe PI): plan for the adapters needed for your installation. Please comply with the regulations in force in your country.
