Dry Nitrous Plate for Holley LS Hi-Ram EFI Intake - Black Anodized Billet Aluminum (plate only)

This NOS plate designed to bolt between the upper and lower intake manifold on Holley Hi-Ram LS manifolds. This sandwich-style plate gives you an easy way to add nitrous oxide to your Hi-Ram equipped LS engine. Our plate is machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection.

Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning. Includes NOS plate, gasket, jet holders, and jets.

Key features

• This dry single stage plate sandwiches between the bottom base and top plate on Holley Hi-Ram intake manifolds
• Designed specifically for optimum nitrous distribution on LS-based engines
• Sprays nitrous directly into each cylinder runner for proper nitrous distribution
• Features a machined 0.103" passage that feeds eight 0.040" openings per intake runner
• Plate is made from billet 6061-T6 aluminum and has laser etched NOS logo
• Anodized Black for corrosion resistance and high quality appearance
• Includes jetting for 50, 100, 150, 200, and 250 horsepower configurations
• Supports up to 1000+ horsepower (jets purchased separatel PI)

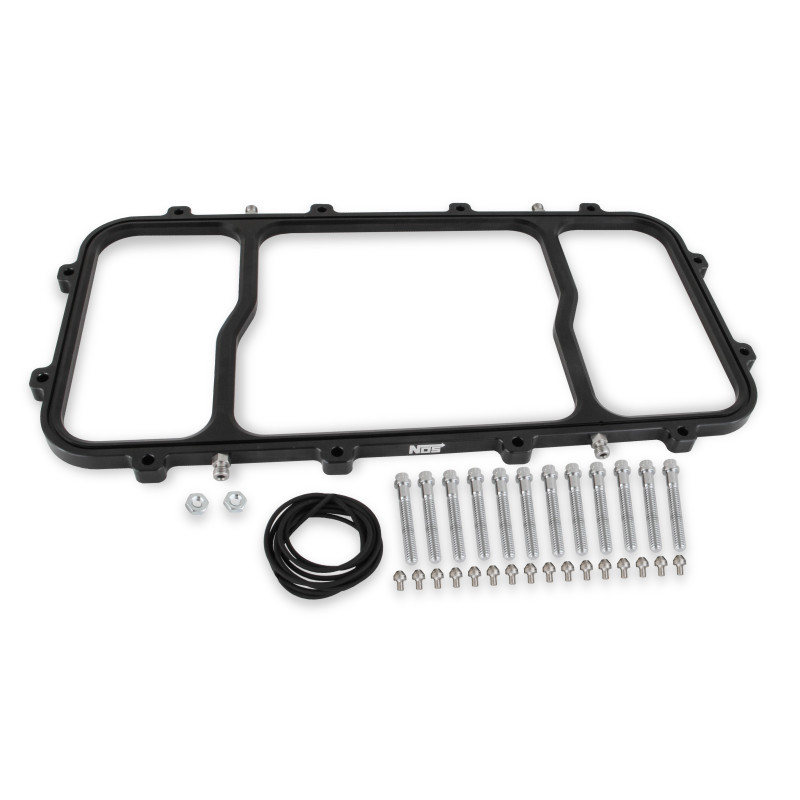

• Includes Plate, Gasket, Hardware, Jet Holders, and Jetting for up to 250 horsepower

Technical specifications

• Brand: NOS (Nitrous Oxide System PI)
• Manufacturer part number: 12535BNOS
• Jet type: Flare
• System type: Dry
• Maximum power: 1000 HP
• Jetting included for: 50, 100, 150, 200, 250 HP
• Delivery style: Hi-Ram Plate
• Plate flange / bolt pattern: Holley Hi-Ram
• Plate thickness: 1/2 in (12.7 m PI)
• Adjustable: Yes
• Bottle included: No
• Brackets included: No
• Colour: Black
• Material: Aluminum
• Plate included: Yes

Important: this product runs on nitrous oxide (N2 PI), a gas we do not supply and which is currently difficult to obtain. It is your responsibility to find a local supplier of gas for professionals. NOS bottles do not comply with CE standards (they do not carry the PI mark): only CE-approved bottles may be used. European manufacturers offer bottles approved to contain this gas; please check the applicable standards and verify the manufacturer's origin and compliance before purchasing. NOS fittings are not metric (AN / NPT threads depending on the part numbe PI): plan for the adapters needed for your installation. Please comply with the regulations in force in your country.
