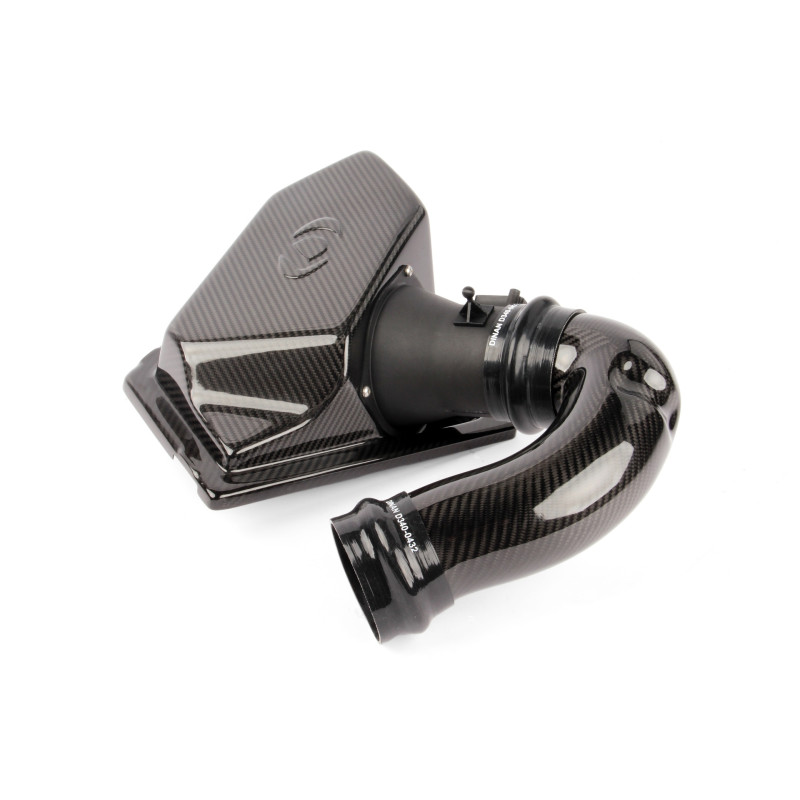

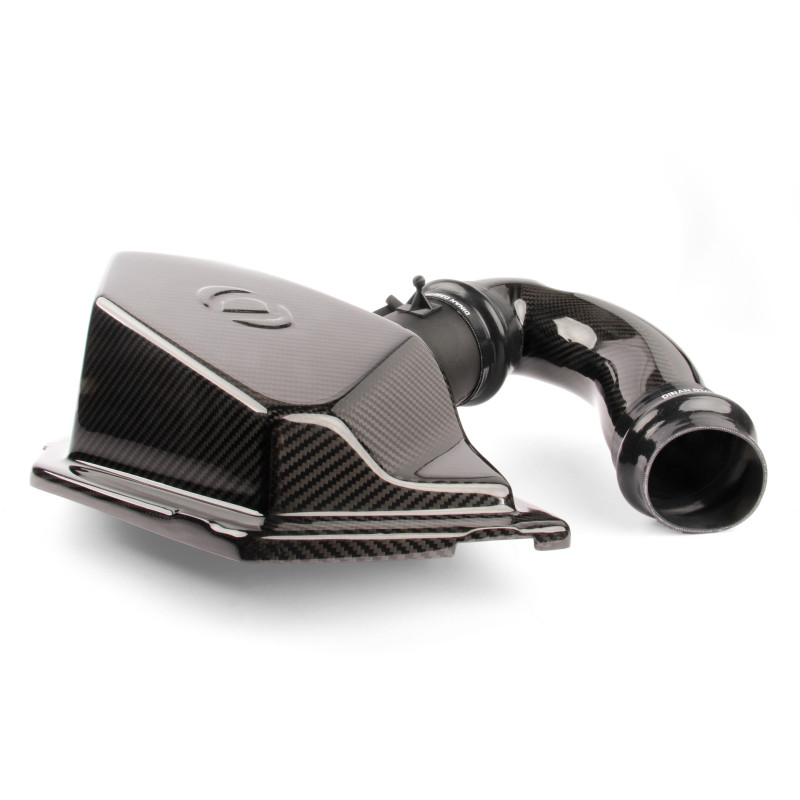

Dinan Intake Kit, 2016-2021 BMW 230i/330i/430i

Brand Dinan Reference D760-0048
Brand
Dinan intake kit for BMW 430i (2017-2020), BMW 330i (2017-2018), BMW 230i (2017-2021) and 6 other model(s). Closed - Carbon Fiber - F22/F23/F30/F31/F32/F33/F34/F36. Max gain +6 @ 5000 RPM hp
?
Available from the manufacturer 2 in stock at factory
Expected delivery to you on Oct 29, 2026
This lead time is an estimate and may change due to circumstances beyond our control

Pricing and ordering reserved for professionals.

Free sign-up, instant trade pricing. Gold discount from your first order of €1,000 excl. VAT, no negotiation needed.

Create a trade account in 2 min

Dinan Intake Kit - BMW 230i/330i/430i 2016-2021, Part No. D760-0048

Technical

  • Specifications Details: Closed - Carbon Fiber - F22/F23/F30/F31/F32/F33/F34/F36
  • Height (in): 10
  • Estimated Install Time (h): 1
  • Length (in): 24
  • Max Power Gain (hp): 6 @ 5000 RPM
  • Max Torque Gain (lb-ft): 6 @ 5000
  • RPM Part Type: Cold Air
  • Intake Weight (lbs): 8
  • Width (in): 18

Key Points

  • More power: +6 hp @ 5000 RPM & +6 lb-ft @ 5000 RPM (+5 WHP +5 WTQ) with no additional modifications
  • Sportier sound
  • Improved throttle response
  • Larger air box (30% larger than stock) that fully seals for maximum isolation from heat that robs power
  • 34% increase in filter surface area (stock: 76.3 in², Dinan: 102.1 in²) for optimal flow
  • Optimized carbon fiber intake tube
  • Free-floating injection-molded MAF sensor housing (OVE 20% larger than original)
  • Quick and easy installation
  • 50 States Emissions Homologation (partial list of applications): CARB EO D-176-56 (2019-21 F2x/F3x 230i/330i/430i only)

Important Notes

The D760-0048 is a closed/sealed intake system, which allows for minimal sound gain. For those who already own the closed system (D760-0048) but prefer more sound without buying a brand-new semi-open intake kit (D760-0048-A), you can order the retrofit kit (vented cover only) separately for $179.95. To do so, contact Dinan technical sales at 1-800-341-5480 and request part number D763-0213-G-A.

Vehicle Fitment

  • BMW 430i (2017-2020) BMW 330i 2.0L 4
  • cylinder (2017-2018) 2.0 BMW 230i 4 cylinder 0L
  • (2017-2021) BMW 230i xDrive 2.0L 4 cylinder
  • (2017-2021) BMW 230i xDrive 4 cylinder 2.0L
  • (2017-2020) BMW 330i xDrive 2.0L 4
  • cylinder (2017-2019) BMW 330i xDrive 2.0L 4 cylinder
  • (2017-2018) BMW 330i GT 4 cylinder 2.0L 4 cylinder
  • xDrive (2017-2019) BMW 430i xDrive 2.0L 4 cylinder
  • (2017-2020) BMW 430i Gran Coupé 4 cylinder 2.0L
  • (2017-2020) 2.0L 4
  • cylinderBMW 430i xDrive Gran Coupé (2017-2020) 2.0L 4 cylinder

Fitment and technical data are provided by Dinan. Check compatibility on the Dinan website before ordering.
