Performance Dogbone and Insert Pack - Audi 8V.5/8Y RS3 & 8S TTRS
Previous
Next
Performance Dogbone and Insert Pack - Audi 8V.5/8Y RS3 & 8S TTRS

Performance Dogbone and Insert Pack - Audi 8V.5/8Y RS3 & 8S TTRS

Brand 034 Motorsport Reference 034-509-1044
Brand

034Motorsport billet spherical dogbone mount with upper and lower inserts, no pucks. Self-lubricating Teflon-lined spherical bearing, T6-6061 aluminum, and 303 stainless spacers. Reduces engine/transmission play for crisper shifts. New hardware included. Fits Audi RS3 8V.5/8Y and TTRS 8S (2.5 TFSI EVO).

?
Estimated restock lead time
Expected delivery to you on Nov 13, 2026
This lead time is an estimate and may change due to circumstances beyond our control

Pricing and ordering reserved for professionals.

Free sign-up, instant trade pricing. Gold discount from your first order of €1,000 excl. VAT, no negotiation needed.

Create a trade account in 2 min

Kit contents

  • Billet spherical end link mount (T6-6061 aluminum, 303 stainless spacers, self-lubricating PTFE-lined spherical bearing, removable design)
  • Upper end link mount insert (T6-6061 billet aluminum, anodized)

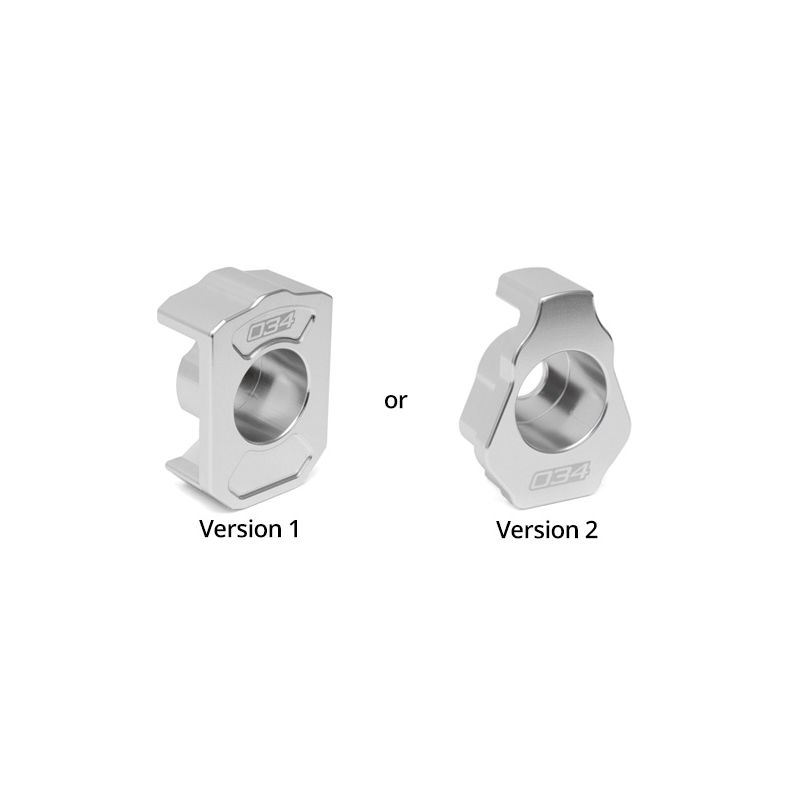

  • Lower end link mount insert (T6-6061 billet aluminum, anodized). Available in 2 versions depending on the vehicle's original mount, to be checked before ordering
  • New hardware (original stretch bolts)

Features

  • Eliminates play in the original mount, more direct torque transfer, crisper gear changes
  • Reduces engine/transmission movement under load, limits wheel hop
  • Upper insert (patent pending): limits end link arm flex under hard loading
  • NVH level: low to moderate

Compatibility

  • Audi RS3 8V.5 (MQB) 2.5 TFSI EVO DAZA, 2017 to present
  • Audi RS3 8Y, 2.5 TFSI, 2023 to present
  • Audi TTRS 8S (MQB) 2.5 TFSI EVO DAZA, 2018 to present

Note: warranty not applicable when used in combination with BFI engine/transmission mounts.

Compatible vehicles (3)

AUDI (3) ▼
Model Engine Fuel Displacement Power Years
RS3 (8Y) Sportback (07/2021 - Aujourd'hui) 2.5 TFSI (400 cv) essence 2500 cc 400 cv 2021+
TTRS 8S (05/2016 - 2023) 2.5 TFSI RS (400 cv) essence 2500 cc 400 cv 2016+
TTRS 8S (05/2016 - 2023) 2.5 TFSI RS FAP (400 cv) essence 2500 cc 400 cv 2016+
Product family: Chassis
Materials: Aluminum Steel
Chassis Engine / Transmission Mounts Subframe Inserts/Reinforcements
